点击放大查看

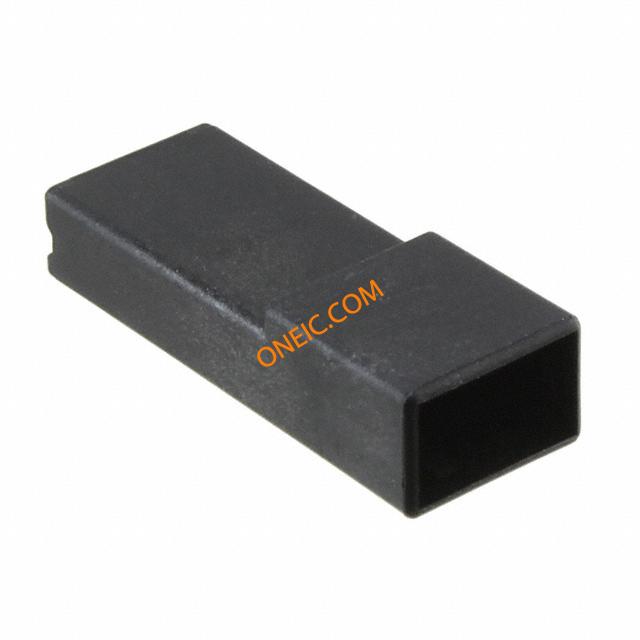

1-926539-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Loose Piece FASTON Terminals - Premier & Commercial CONN HOUSING 1POS .250 BLACK FASTON, housing, black, 6.35 Terminals HOUSING BLACK Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon 4/6 MaterialHousing Color = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON,HOUSING,BLACK,6.35 TE Connectivity AMP FASTON 系列 1 触点 尼龙 66 压接端子外壳 |
| 分类 |
商业参数
| 产品 | Terminal Housings | 交货时间 | 58 Days |
| 子类别 | Connector Discrete Wire Housing | 产品类别 | Terminals |
| 标准包装数量 | Bag | 工厂包装数量 | 2000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 6.35 | ||
机械参数
| 颜色 | Black | 深度 | 9.2mm |
| 宽度 | 6mm | 长度 | 24.4mm |
| 材料（通用） | Nylon 4/6 | 包装方式 | Loose Piece |
| 绝缘类型 | Not Insulated | 外壳颜色 | Black |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 6.35 mm |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | 插头 | 排数 | 1 |
| 壳体材料 | Nylon | 总长度 | FASTON .250 |
| 包装数量 | Loose Piece | 主要材料 | 尼龙 66 |
| 端接样式 | Crimp | 触点数 | 1 |
| 位数 | 1 | 触点镀层厚度 - 柱 | 6.35mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 1-926539 | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 电路数 | 1 | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
环境参数
| 温度范围 | 170.0 | ||
