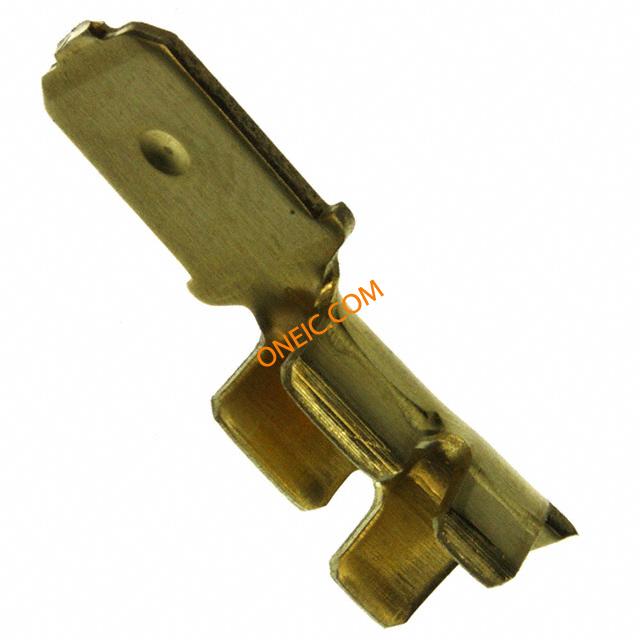

点击放大查看
41411
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 19.69mm Silver Strip on Reel Terminals 250 FAST TAB IS Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON 14-18 AWG .250 Quick Disconnect Terminal 14-18AWG M 19.69mm Silver Strip on Reel Search Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, FASTON .250 (6.3 MM) TAB 18-14 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27887CT |
| 产品类别 | Terminals | 标准包装数量 | 8,000 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
机械参数
| 颜色 | Not Required | 深度 | 6.22 mm |
| 表面处理 | Silver | 长度 | 19.69 mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.312" (7.92mm) |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Wire |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | 银 | 壳体镀层 | Silver |
| 线束直径 | 2 mm | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 总长度 | 0.775" (19.69mm) | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 适用端子尺寸 | 3.05 – 4.32 mm [ .12 – .17 in ] | 绝缘直径 | 3.05-4.32 [.120-.170] |
| 绝缘材料 - 类型 | No | 安装孔直径 | Without |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 外径-未扩张 | 4.32 mm [ .17 in ] |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Male |
| 系列 | 250 | 产品子类型 | Tab |
| 其他规格 | Wire Crimp | ||
