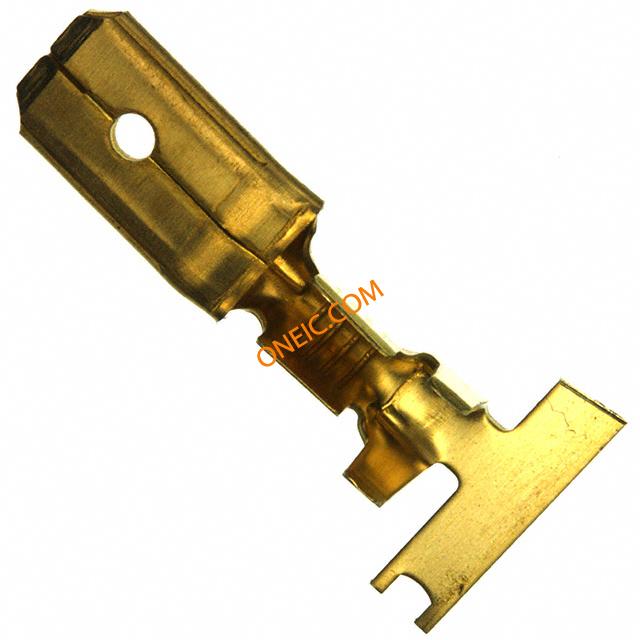

点击放大查看
42474-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 20.57mm 6.35mm Reel Terminals .250 FAST TAB F O 18-14 AWG Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB WIRECRIMP FAST 14-18AWG Quick Disconnect Terminal 14-18AWG M 20.57mm 6.35mm Reel Product Highlights:TabTab Type = Wire CrimpUninsulatedTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL,TAB DISCONNECT, 6.35MM, CRIMP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
机械参数
| 表面处理 | None | 重量 | 0 |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | No | 插片长度 | 0.370" (9.40mm) |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 安装类型 | Straight | 螺柱/焊片尺寸 | :6.35mm x 0.81mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Contact | 触头材料 | Brass |
| 总长度 | 0.810" (20.57mm) | 包装数量 | Reverse Reeled |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 2.79-3.81 [.110-.150] | 安装孔直径 | Without |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 备注 | Reverse Reel | 类型 | Tab Terminal |
| 连接器性别 | Male | 系列 | 250 |
| 产品子类型 | Tab | 其他规格 | Wire Crimp |
