42475-4

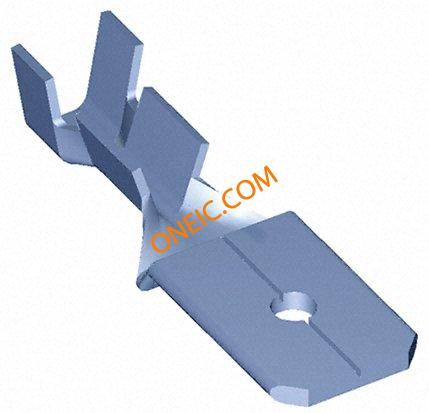

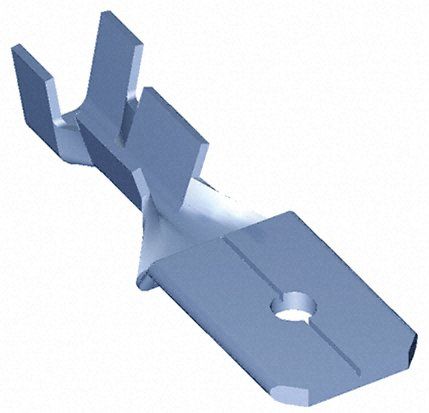

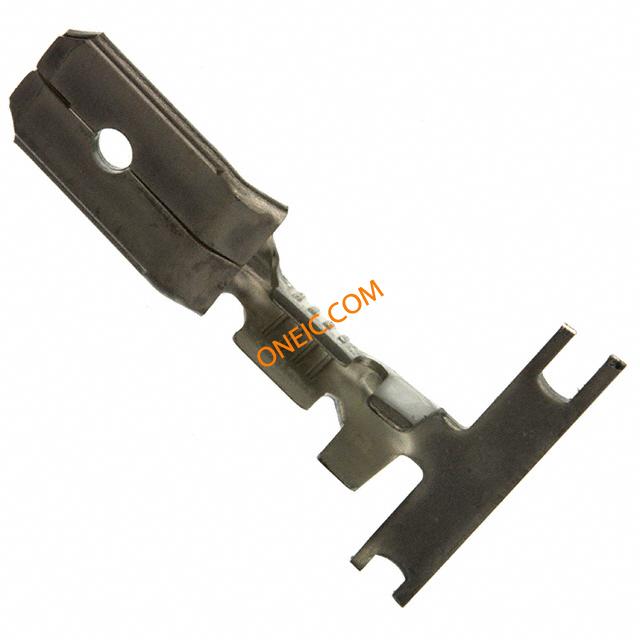

点击放大查看

42475-4

制造商
TE Connectivity Ltd.
描述Quick Disconnect Terminal 18-22AWG M 20.7mm 6.35mm Tin Strip on Reel Terminals .250 FAST TAB F O 22-18 AWG Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB WIRECRIMP FAST 18-22AWG Tab crimp terminal,FASTON 250, AWG 22-18 Quick Disconnect Terminal 18-22AWG M 20.7mm 6.35mm Tin Strip on Reel Product Highlights:TabTab Type = Wire CrimpUninsulatedTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TE Connectivity FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FASTON 250 TERMINAL TAB 22-18 AWG TPBR
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

产品Faston Terminals产品类别Terminals
标准包装数量3,500工厂包装数量3500

合规参数

RoHSRoHS CompliantUL等级已获认证
UL列名Recognized抗辐射加固No
无铅定义Not relevant for lead free process认可国家是
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志Yes

电气参数

核心类型Open最大频率Single
开关功能快速连接

机械参数

颜色Not Required深度6.35 mm
表面处理Tin长度0.815 in
材料（通用）Brass包装方式Tape & Reel (TR)
插片宽度6.35 x 0.81 [.250 x .032]电缆类型Regular Wire
绝缘类型Not Insulated插片长度0.370" (9.40mm)
导线线规22-18端接方式Crimp
基体材料Brass安装类型Wire
螺柱/焊片尺寸0.37 in x 0.25 in插片厚度0.032" (0.81mm)
端子类型Standard电缆直径0.8mm²
电缆材料Stranded连接器类型Yes
接触镀层Tin壳体镀层Tin
线束直径0.9 mm连接器用途Wire & Cable
插入件材料黄铜插入力普通
触头材料Brass总长度0.815" (20.70mm)
包装数量Strip导线端接方式No
绝缘高度Insulation Support端接样式Crimp
适用端子尺寸2.03 – 3.05 mm [ .08 – .12 in ]接触件尾部长度0.81mm
绝缘直径2.03-3.05 [.080-.120]绝缘材料 - 类型No
焊盘布局尺寸6.35 x 0.81mm安装孔直径Without
法兰上方插针尺寸6.35 mm [ .25 in ]法兰下方引脚尺寸.81 mm [ .032 in ]
接触镀层厚度40线规或范围 - AWG18AWG
线规或范围 - mm²0.30-0.90² [22-18]触点镀层厚度 - 柱6.35mm
外径-未扩张3.05 mm [ .12 in ]

产品信息

类型Quick Disconnect Ter连接器性别Male
系列250产品子类型Tab
其他规格Wire Crimp

文档与媒体

在线文档
42475-4?RQPN=42475-4
