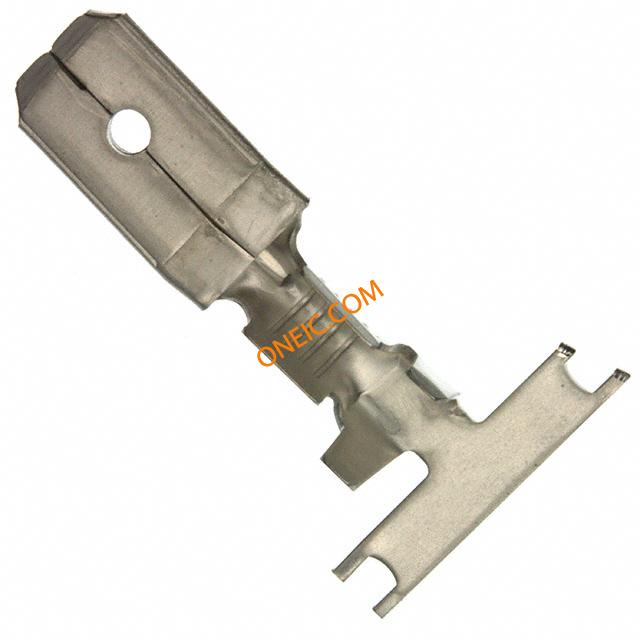

点击放大查看
42474-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 20.57mm 6.35mm Tin Reel Terminals .250 FAST TAB F Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB WIRECRIMP FAST 14-18AWG Quick Disconnect Terminal 14-18AWG M 20.57mm 6.35mm Tin Reel Product Highlights:TabTab Type = Wire CrimpUninsulatedTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | UL列名 | Recognized |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.370" (9.40mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 安装类型 | Straight |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 接触镀层 | Tin |
| 触头材料 | Brass | 总长度 | 0.810" (20.57mm) |
| 包装数量 | Reverse Reeled | 绝缘高度 | Insulation Support |
| 端接样式 | Quick Disconnect, Terminals | 绝缘直径 | 2.79-3.81 [.110-.150] |
| 安装孔直径 | Without | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 备注 | Reverse Reel | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Tab |
| 其他规格 | Wire Crimp | ||
