点击放大查看

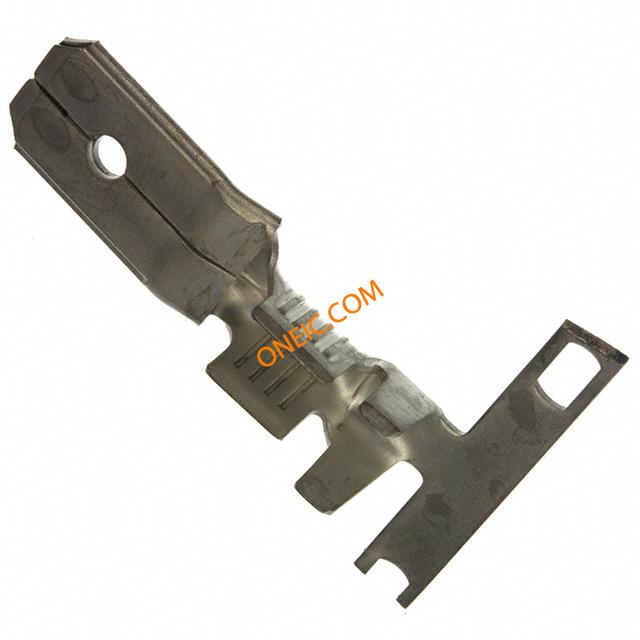

61281-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 12-14AWG Tab 20.57mm 6.35mm Tin Strip Terminals .250 FAST TAB 14-12 AWG Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FAST 12-14 AWG .250 Quick Disconnect Terminal 12-14AWG Tab 20.57mm 6.35mm Tin Strip Product Highlights:TabTab Type = Wire CrimpUninsulatedTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, FASTON 250 TAB 14-12 AWG TPBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | ||
机械参数
| 表面处理 | Tin | 长度 | 0.81 in |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.370" (9.40mm) |
| 导线线规 | 14-12 | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 6.35 mm x 0.81 mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 线束直径 | 3 mm |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 普通 | 触头材料 | Brass |
| 总长度 | 0.810" (20.57mm) | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 2.79 – 4.32 mm [ .11 – .17 in ] |
| 绝缘直径 | 2.79-4.32 [.110-.170] | 绝缘材料 - 类型 | No |
| 总厚度 | .38 mm [ .015 in ] | 安装孔直径 | Without |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 40 | 线规或范围 - mm² | 2.00-3.00² [14-12] |
| 外径-未扩张 | 4.32 mm [ .17 in ] | ||
产品信息
| 连接器性别 | Male | 产品子类型 | Tab |
| 其他规格 | Wire Crimp | ||
