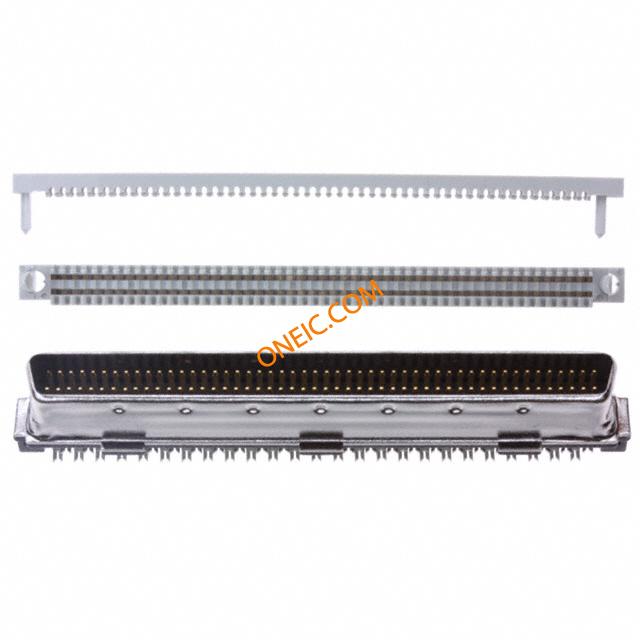

1-5750913-9
| 制造商 | |
| 描述 | Conn SCSI PL 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port D-Sub Standard Connectors CABLE PLUG 100P w/lacing covers gray .050 Series Cable Connectors (SCSI) 100 50SR CABLE CONN KIT Conn SCSI PL 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 100Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, PLUG, 100POS, IDC/IDT Conn;D-Sub;CablePlug;100Pos;STR;IIISeries;IDC;30-28AWG TE Connectivity Amplimite .050 III 系列 100 路 1.27mm节距 直 电缆安装 公 SCSI 连接器, 压接, 快速闩锁 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | SCSI |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,CSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 最大额定电流 | 1A | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Gray | 深度 | 14.94 mm |
| 间距 | 1.27 mm | 高度 | 9.47 mm |
| 重量 | 1 | 包装方式 | Bulk |
| 出线方向 | Straight | 电缆类型 | Round Jacketed Cable |
| 导线线规 | 30-28 | 屏蔽类型 | Yes |
| 端接方式 | IDT | 触头类型 | Signal |
| 第二连接器 | Without | 安装类型 | Cable Mount |
| 外壳镀层 | Tin-Nickel Alloy | 行程角度 | Straight |
| 连接器类型 | IDC | 接触镀层 | Gold |
| 安装导轨 | Without | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 触头材料 | Phosphor Bronze |
| 线缆终端 | Unassembled | 壳体材料 | Thermoplastic |
| 总长度 | 71.86 mm | 面板安装类型 | Without |
| 主要材料 | D-Subminiature | 端接样式 | IDC |
| 触点数 | 100 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.74 â 0.91 [0.029 â 0.036] | 位数 | 100 |
| 外壳材料及表面处理 | Steel, Tin-Nickel Plated | 接触镀层厚度 | Flash |
| 线规或范围 - mm² | 0.05-0.09² [30-28] | 第一连接器安装类型 | :Cable |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 备注 | Plug connector requires backshell kit for complete assembly | 类型 | SCSI |
| 制动位 | Without | 连接器性别 | PL |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | III | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 Port |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 结工作温度 | 105C |
文档与媒体
相关型号

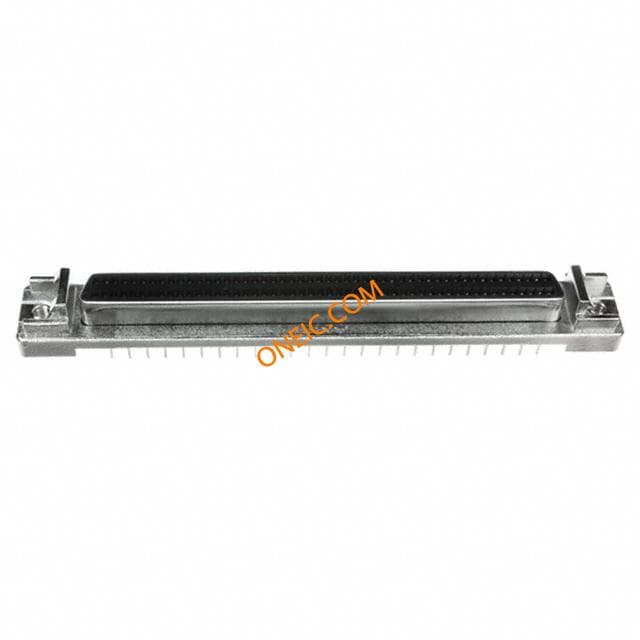

5749069-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port .050 Series Board Mount Connectors CONN RCPT VERT .050 100POS GOLD AMPLIMITE .050 d-sub PCB socket,100 way Headers & Wire Housings VERT RCPT ASSY 100 50SR .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub Conector,rcpD,vertical,PCB,wRail,100W TE Connectivity Amplimite .050 III 系列 2.54mm 节距 100 路 直向 通孔安装 PCB D-sub 连接器 插座 100 50SR VERT RCPT ASSYY
749070-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 POS VERT RCPT W/O RAILS AND LATCH .050 Series Board Mount Connectors 100 50SR VERT RCPT ASSY Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;100Pos;STR;IIISeries;Solder
787362-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100P RECEPTACLE 336 .050 Series Board Mount Connectors 100 50SR R/A,REDESIGN .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
787170-9
te connectivity / amp
Conn SCSI HDR 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors R/A RECEPT 100 POS .050 Series Board Mount Connectors CONN R/A RECEPT 100POS .05" Conn SCSI HDR 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 100 50SR R/A RCPT,RESESIGN
749069-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100P RECPT 378 .050 Series Board Mount Connectors CONN RCPT VERT .050 100POS GOLD Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 100Straight OrientationThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 100 50SR VERT RCPT ASSY
787082-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 50SR R/A RCPT RESESIGN .050 Series Board Mount Connectors CONN R/A RECEPT 100POS .05" 787082-9 .050 Series Board Mount Connectors Product Highlights:ConnectorConnector Type = Receptacle100 PositionsThrough Hole Contact Termination TypeRight Angle Mount AngleSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 100 50SR R/A RCPT,RESESIGN
5787082-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube D-Sub Standard Connectors 100 50SR R/A RCP ASSY RDSN L/F .050 Series Board Mount Connectors CONN RCPT 100POS RT ANG T/H Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub AMPLIMITE.050d-subPCBsocket,100way TE Connectivity Amplimite .050 III 系列 2.54mm 节距 100 路 直角 通孔安装 PCB D-sub 连接器 插座 100 50SR R/A RCP ASSY,RDSN L/F
5786555-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 1.27mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 50SR VERT RCPT FL TOP ACT PN .050 Series Board Mount Connectors 100 50SR VRT RCPT,FL TP,ACT PN .050 Series Board Mount Connectors Product Highlights:ConnectorHousing Gender = Receptacle100 PositionsVertical Mount AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
5787170-9
te connectivity / amp
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 050 100R R/A .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 100PCB Mount Angle = Right AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM 100 50SR R/A RCP ASSY,RDSN L/F
1761028-5
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube D-Sub Standard Connectors 050 100R R/A PCB .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 AMPLIMITE .050 d-sub PCB socket,100 way 1761028-5 Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM Conn;D-Sub;PCBSocket;100Pos;RTAng;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 100 路 直角 通孔安装 PCB D-sub 连接器 插座 100 50SR R/A RCPT ASSY,LEADFREE
787169-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 POS RA RCPT ASSY W/O BOARDLOCKS .050 Series Board Mount Connectors CONN 100POS .05 AMPLMT RECP RTAG 100 50SR R/A RCPT,RESESIGN
1-787082-8
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube D-Sub Standard Connectors 100 50SR R/A RCPT REDESIGN .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 100 50SR R/A RCPT,RESESIGN
786555-9
te connectivity / amp
Conn D-Subminiature RCP 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub High Density Connectors 100 50SR VRT RECEPT .050 Series Board Mount Connectors 100 50SR VRT RCPT,FL TP,ACT PN .050 Series Board Mount Connectors Product Highlights:ConnectorHousing Gender = Receptacle100 PositionsVertical Mount AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
5749197-1
te connectivity / amp
100 50SR KIT,ST,UK D-Sub Tools & Hardware 100 50SR KIT ST UK Backshell Kit 180° Nickel Over Copper Zinc Individual TE Connectivity Amplimite 0.050 系列 100 路 直 锌 D-sub 连接器底壳 , 带应力消除
5749070-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 POS VERT RCPT W/O RAILS AND LATCH .050 Series Board Mount Connectors CONN RCPT 100POS VERT .050 GOLD AMPLIMITE .050 d-sub PCB socket,100 way Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 100PCB Mount Angle = VerticalThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM Conn;D-Sub;PCBSocket;100Pos;STR;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 2.54mm 节距 100 路 直向 通孔安装 PCB D-sub 连接器 插座 100 50SR VERT RCPT ASSY
5787169-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 050 100R R/A .050 Series Board Mount Connectors CONN RECPT 100POS R/A .050" GOLD AMPLIMITE .050 d-sub PCB socket,100 way Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub CONNECTOR, D-SUB, 100WAY Conn;D-Sub;PCBSocket;100Pos;RTAng;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 2.54mm 节距 100 路 直角 通孔安装 PCB D-sub 连接器 插座 100 50SR R/A RCP ASSY,RDSN L/F
5786554-9
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 50SR VERT RCPT L R ACT PN .050 Series Board Mount Connectors CONN RCPT 100POS VERT .050 GOLD Conn D-Subminiature F 100 POS 2.54mm Solder ST Thru-Hole 100Terminal 1Port Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub TE Connectivity Amplimite .050 III 系列 1.27mm 节距 100 路 直向 通孔安装 PCB D-sub 连接器 插座 100 50SR VRT RCPT,L,R,ACT PIN
5787362-9
te connectivity / amp
Conn D-Subminiature RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors R/A RCP ASSY 100 50SR RDSN .050 Series Board Mount Connectors CONN RECPT 100POS R/A .050" GOLD Conn D-Subminiature RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 100 Position 1.27 mm Pitch Series III Right-Angle PCB Through Hole Receptacle 100 50SR R/A RCP ASSY,RDSN L/F

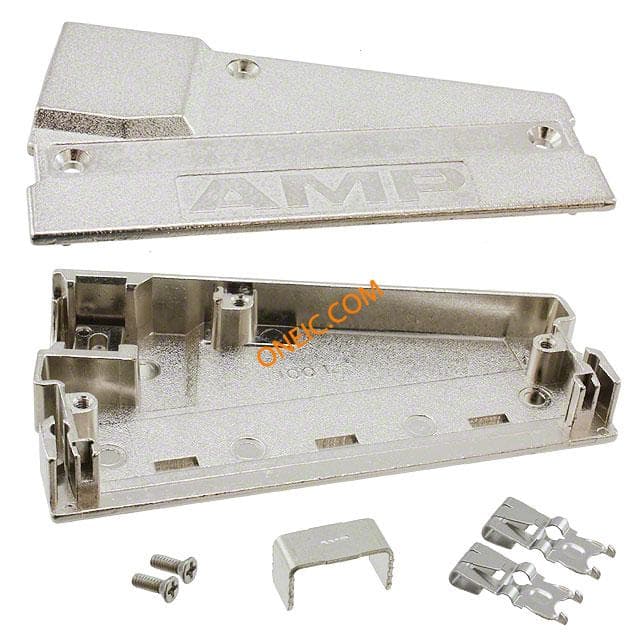

5749206-1
