点击放大查看

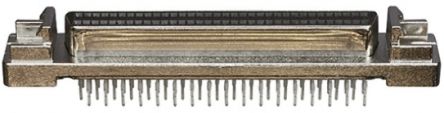

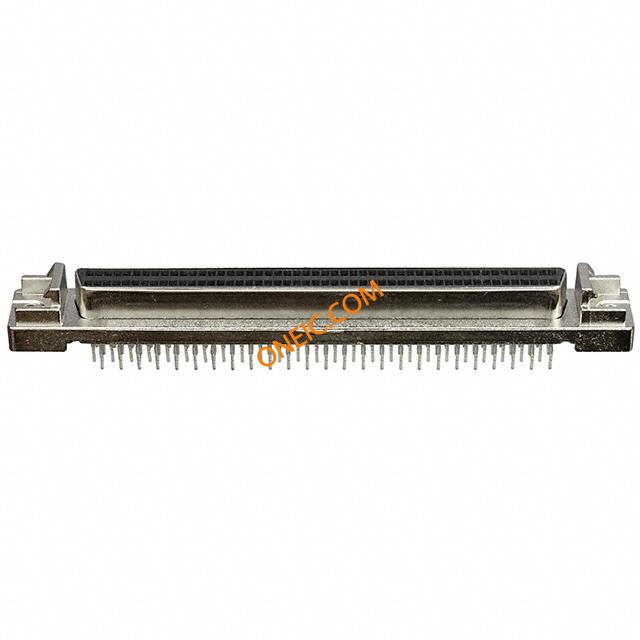

5786554-9
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 50SR VERT RCPT L R ACT PN .050 Series Board Mount Connectors CONN RCPT 100POS VERT .050 GOLD Conn D-Subminiature F 100 POS 2.54mm Solder ST Thru-Hole 100Terminal 1Port Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub TE Connectivity Amplimite .050 III 系列 1.27mm 节距 100 路 直向 通孔安装 PCB D-sub 连接器 插座 100 50SR VRT RCPT,L,R,ACT PIN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 6 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | LR-86179-1, UL E28476 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 30V |
| 开关功能 | Without | 最大额定电流 | 1A |
机械参数
| 颜色 | Black | 深度 | 10.31mm |
| 间距 | 2.54 mm | 宽度 | 8.92mm |
| 长度 | 84.2mm | 包装方式 | Tube |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 方向 | 直 | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 外壳表面处理 | 铜镀镍 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 外壳镀层 | Nickel over Copper | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin over Nickel | 法兰特征 | Housing/Shell (2-56); Latchblocks, Rails |
| 接地类型 | 不带 | 安装导轨 | With |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Carbon Steel | 电路板厚度 | 1.57 â 2.36 [0.062 â 0.093] |
| 连接器样式 | D-Type | 插入件材料 | 磷青铜 |
| 锁定特性 | Latch Blocks | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 框架材料 | 锌 |
| 安装特性 | 作用/符合标准的尾 | 包装数量 | 6 |
| 面板安装类型 | 通孔 - 焊接 | 尺寸/外形 | 84.2 x 8.92 x 10.31mm |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 触点数 | 24 | 位数 | 100 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 2.77 mm [ .109 in ] |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触件表面处理 - 配合 | 铜镀镍 |
| 端子柱长度 | 4.39 [0.173] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 基础产品编号 | 5786554 | 其他规格 | 2-56 mm 螺纹插件，导轨和闩锁 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 – 2.36 mm [ .062 – .093 in ] |
