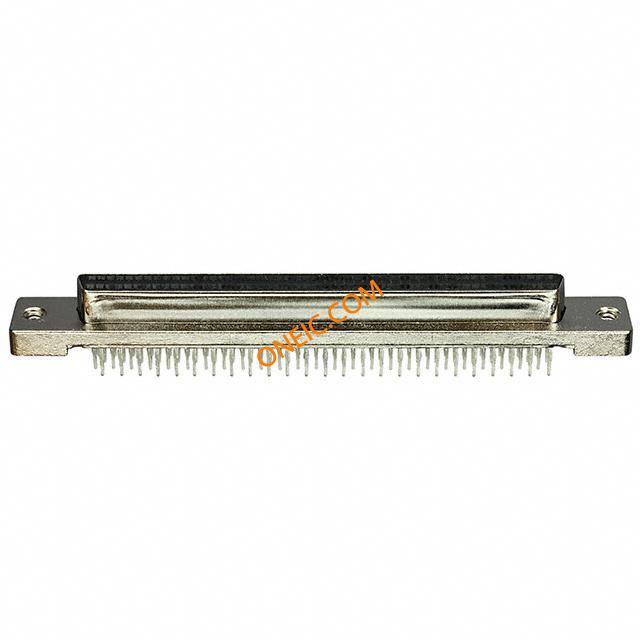

点击放大查看
5786555-9
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 100 POS 1.27mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 50SR VERT RCPT FL TOP ACT PN .050 Series Board Mount Connectors 100 50SR VRT RCPT,FL TP,ACT PN .050 Series Board Mount Connectors Product Highlights:ConnectorHousing Gender = Receptacle100 PositionsVertical Mount AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub |
| 分类 |
商业参数
| 标准包装规格 | 6 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 6 |
合规参数
| RoHS | RoHS Compliant | 标准 | LR-86179-1, UL E28476 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 屏蔽类型 | Yes |
| 端接方式 | Press-Fit | 触头类型 | Signal |
| 外壳表面处理 | 铜镀镍 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 外壳镀层 | Nickel over Copper | 电缆材料 | 镍打底镀锡 |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | 不带 |
| 安装导轨 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Carbon Steel |
| 电路板厚度 | 1.57 â 2.36 [0.062 â 0.093] | 连接器样式 | D-Type |
| 插入件材料 | 磷青铜 | 锁定特性 | Mounting Screws |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 框架材料 | 锌 | 安装特性 | 作用/符合标准的尾 |
| 包装数量 | 6 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Through Hole | 触点数 | 28 |
| 位数 | 100 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 3.18 mm [ .125 in ] | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触件表面处理 - 配合 | 铜打底镀镍 | 端子柱长度 | 4.39 [0.173] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 连接器性别 | Receptacle | 系列 | Series III |
| 产品特性 | Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | 否 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 – 2.36 mm [ .062 – .093 in ] |
