点击放大查看

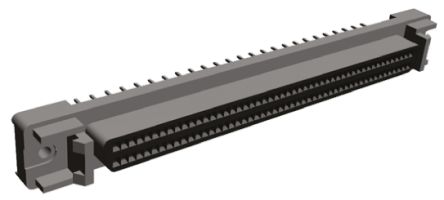

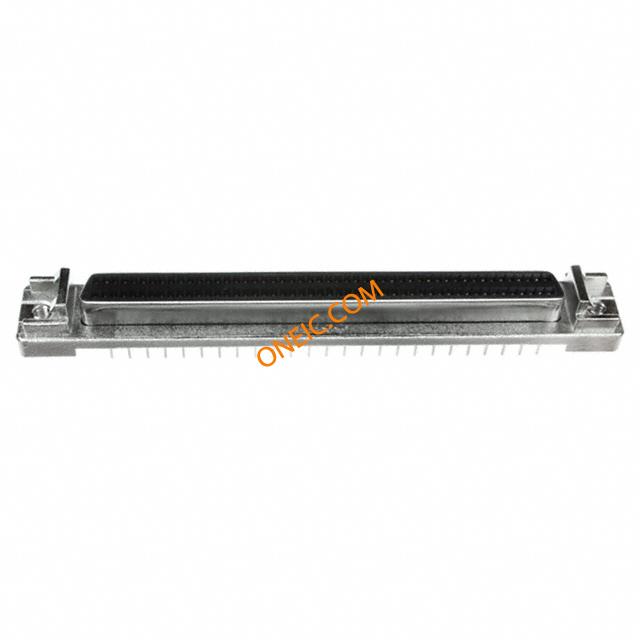

5749069-9
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port .050 Series Board Mount Connectors CONN RCPT VERT .050 100POS GOLD AMPLIMITE .050 d-sub PCB socket,100 way Headers & Wire Housings VERT RCPT ASSY 100 50SR .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub Conector,rcpD,vertical,PCB,wRail,100W TE Connectivity Amplimite .050 III 系列 2.54mm 节距 100 路 直向 通孔安装 PCB D-sub 连接器 插座 100 50SR VERT RCPT ASSYY |
| 分类 |
商业参数
| 标准包装规格 | 6 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 6 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 深度 | 10.31mm |
| 间距 | 2.54 mm | 宽度 | 8.92mm |
| 长度 | 84.2mm | 包装方式 | Tube |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 方向 | 直 | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 外壳表面处理 | 铜镀镍 | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Nickel over Copper |
| 电缆材料 | 锡 | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin | 法兰特征 | Housing/Shell (2-56); Latchblocks, Rails |
| 安装导轨 | With | 安装样式 | 带有 |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 插入件材料 | 磷青铜 |
| 锁定特性 | Latch Blocks | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 框架材料 | 锌 |
| 安装特性 | 安装孔 | 包装数量 | 6 |
| 面板安装类型 | 通孔 - 焊接 | 尺寸/外形 | 84.2 x 8.92 x 10.31mm |
| 端接样式 | Through Hole | 触点数 | 100 |
| 位数 | 100 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 2.77 mm [ .109 in ] | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触件表面处理 - 配合 | 铜打底镀镍 | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 其他规格 | 安装孔 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
