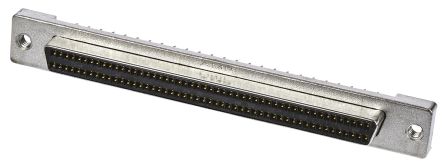

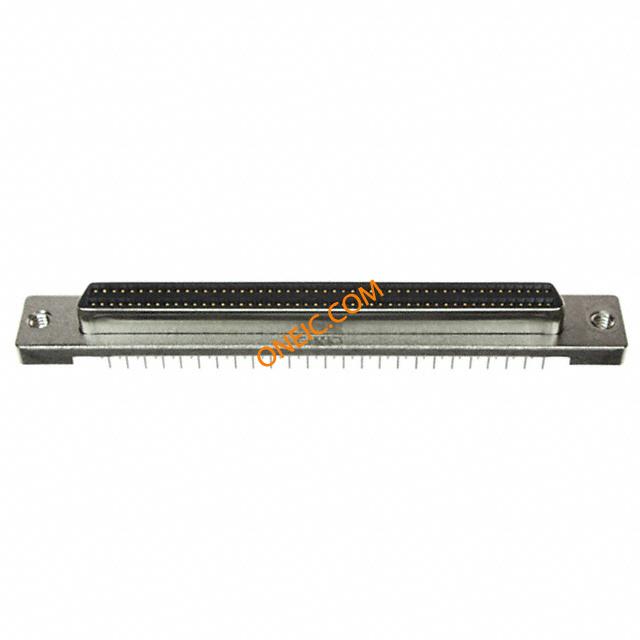

5749070-9
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 100 POS VERT RCPT W/O RAILS AND LATCH .050 Series Board Mount Connectors CONN RCPT 100POS VERT .050 GOLD AMPLIMITE .050 d-sub PCB socket,100 way Conn D-Subminiature SKT 100 POS 2.54mm Solder ST Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 100PCB Mount Angle = VerticalThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM Conn;D-Sub;PCBSocket;100Pos;STR;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 2.54mm 节距 100 路 直向 通孔安装 PCB D-sub 连接器 插座 100 50SR VERT RCPT ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 6 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 开关功能 | Without | 最大额定电流 | 1A |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 10.31mm |
| 间距 | 2.54 mm | 宽度 | 8.71mm |
| 高度 | 8.71 mm | 长度 | 84.2mm |
| 重量 | 0.014 | 包装方式 | Tube |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Tin over Copper |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装导轨 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Type |
| 锁定特性 | Jackscrews | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 84.2 mm |
| 尺寸/外形 | 84.2 x 8.71 x 10.31mm | 端接样式 | Solder |
| 触点数 | 100 | 接触件端接 | :Through Hole Vertical |
| 位数 | 100 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 第一连接器安装类型 | :PCB |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 备注 | Female screwlocks must be used to mate with cable assemblies with male jackscre | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-22 |
| 产品特性 | Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号

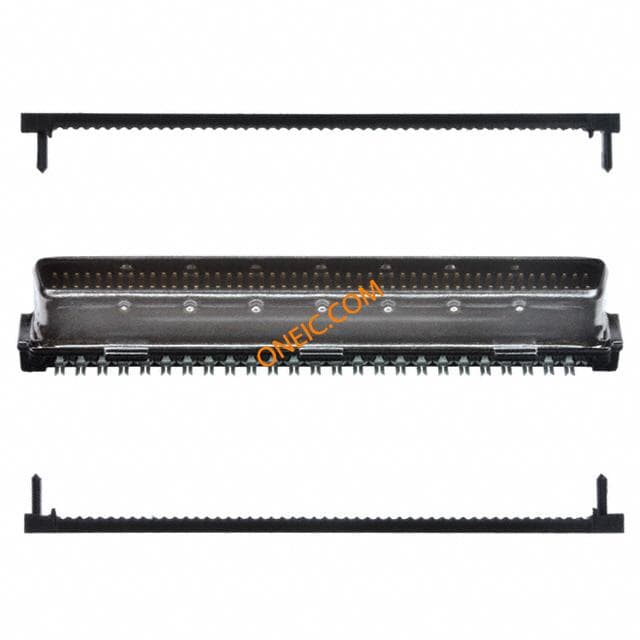

5749111-8
