点击放大查看
5749197-1
| 制造商 | |

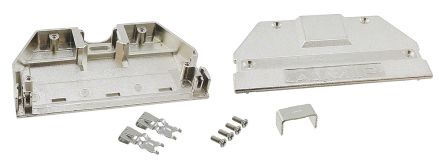

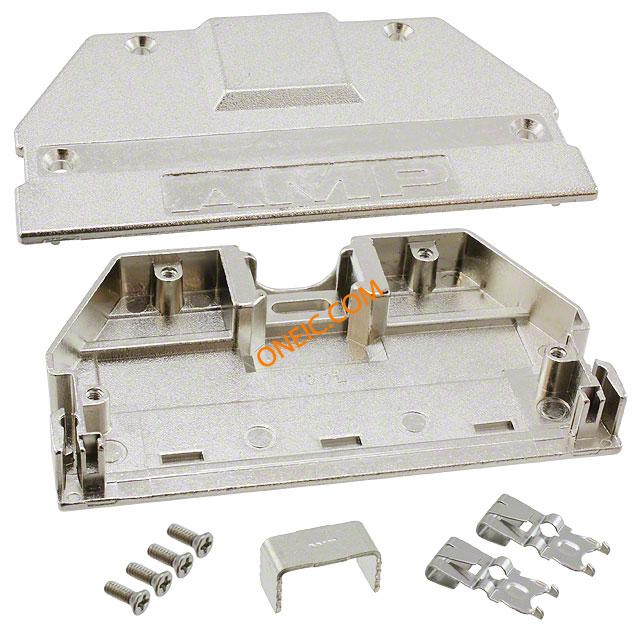

| 描述 | 100 50SR KIT,ST,UK D-Sub Tools & Hardware 100 50SR KIT ST UK Backshell Kit 180° Nickel Over Copper Zinc Individual TE Connectivity Amplimite 0.050 系列 100 路 直 锌 D-sub 连接器底壳 , 带应力消除 |
| 分类 |
商业参数
| 产品 | Accessories | 交货时间 | 70 Days |
| 子类别 | Backshells | 产品类别 | D-Sub Tools & Hardware |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Silver | 镀层 | Nickel over Copper |
| 材料（通用） | Metal, Zinc | 包装方式 | Bulk |
| 屏蔽 | Shielded | 出线方向 | 180° |
| 电缆类型 | Round | 方向 | 直 |
| 电缆开口 | 180° | 材料表面处理 | Nickel over Copper |
| 壳体材料 | 锌 | 触点数 | 100 |
| 位数 | 100 | 供应商器件封装 | Assembly Hardware, Strain Relief |
| 静电放电屏蔽 | 是 | ||
产品信息
| 类型 | Backshell Kit | 系列 | AMPLIMITE .050 III, AMP |
| 产品特性 | Assembly Kit, Spring Lock | 功能 | Unassembled |
| 硬件配件 | Assembly Hardware, Strain Relief | 主要用途 | Assembly Kit, Spring Lock |
| 附件类型 | Two Piece Backshell | 适用产品/相关产品 | 749197-1 |
