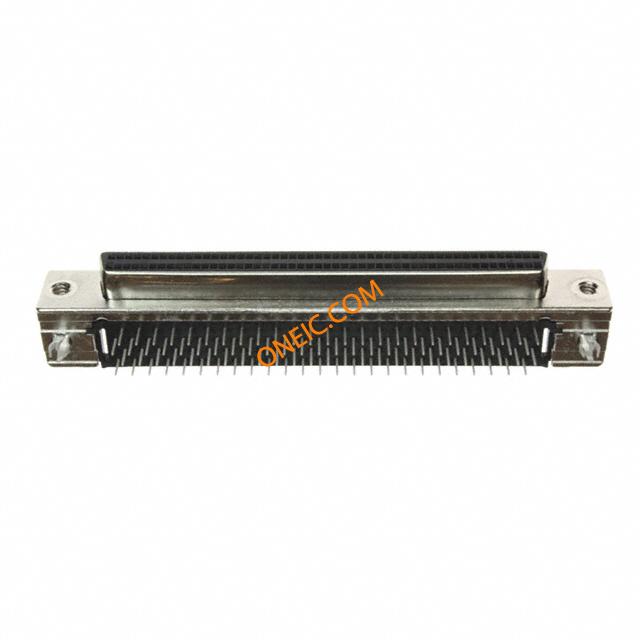

5787362-9
| 制造商 | |
| 描述 | Conn D-Subminiature RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors R/A RCP ASSY 100 50SR RDSN .050 Series Board Mount Connectors CONN RECPT 100POS R/A .050" GOLD Conn D-Subminiature RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 100 Position 1.27 mm Pitch Series III Right-Angle PCB Through Hole Receptacle 100 50SR R/A RCP ASSY,RDSN L/F |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 6 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL E28476 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm [ .05 in ] |
| 镀层 | Tin over Nickel | 材料（通用） | Zinc |
| 包装方式 | Tube | 屏蔽 | 是 |
| 厚度 | 1.57 [0.062] | 壳体颜色 | 黑色 |
| 轴径尺寸 | .012 | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触点形式 | Signal |
| 触头类型 | Signal | 外壳表面处理 | 铜镀镍 |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Right Angle | 外壳镀层 | Nickel over Copper |
| 端子尺寸 | .109 | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold (30) | 法兰特征 | Housing/Shell (4-40) |
| 安装导轨 | Without | 安装样式 | 带有 |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 框架材料 | 锌 | 安装特性 | 板锁 |
| 包装数量 | 6 | 面板安装类型 | 通孔 - 焊接 |
| 接地凹痕 | Without | 位数 | 100 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 不带 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触件表面处理 - 配合 | 铜镀镍 |
| 端子柱长度 | 3.05 [0.120] | 接触镀层厚度 | Flash |
| 后壳材料及镀层 | 镍打底镀锡 | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 备注 | Female screwlocks must be used to mate with cable assemblies with male jackscre | 连接器性别 | Receptacle |
| 系列 | Series III | 产品特性 | Board Lock, Shielded |
| 主要用途 | Board Lock, Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
