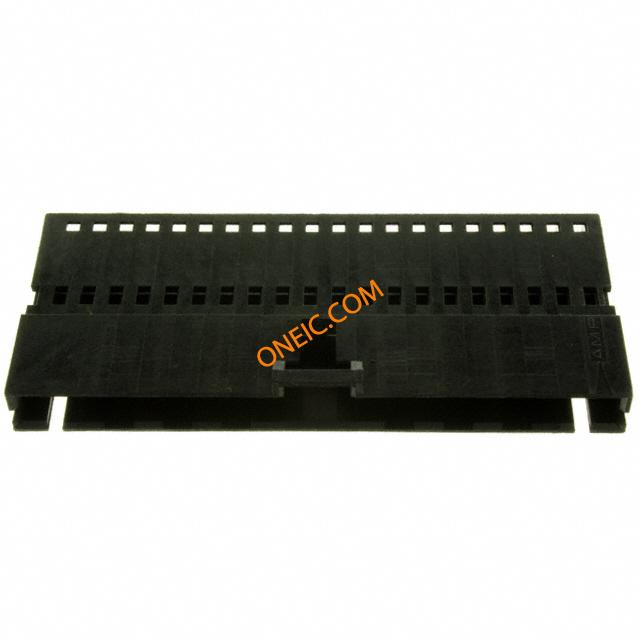

1-103653-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 20POS .1" POL UNLOAD Headers & Wire Housings 20 SHRD PIN HSG SR LATCH 20 MTE SHRD PIN HSG SR LATCH 20 MTE SHRD PIN HSG SR LATCH Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A28792 |
| 标准包装规格 | 1 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Detent Latching | 供电电压 | 250 VAC |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 |
| 保护额定电压（VPR） | 600 VACrms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 6.604 mm [ .26 in ] | 长度 | 53.213 mm [ 2.09 in ] |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 排间距 | 2.54 mm | 触头类型 | Male Pin |
| 极化 | Latched | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 排数 | 1 |
| 封装形式 | Pin | 插入件材料 | 磷青铜 |
| 锁定特性 | Detent Latching | 壳体材料 | Thermoplastic |
| 包装数量 | 1 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | Crimp |
| 位数 | 20 | 兼容外壳尺寸（如TM-700等） | 公端 |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 [.100] |
| 典型触点布局 | 同轴 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
文档与媒体
相关型号
104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Headers & Wire Housings MTE PIN 22-26AWG 104505-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
104505-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 26-22 AWG TIN Headers & Wire Housings PIN 26-22 AWG TIN 104505-8 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
5-104506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32 AWG TIN Headers & Wire Housings MTE PIN LP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN LP
1-103648-9
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 UNLOADED Headers & Wire Housings RCPT 20P .100 UNLOAD Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 MTE RCPT HSG SR RIB .100CL
1-104257-9
te connectivity / amp

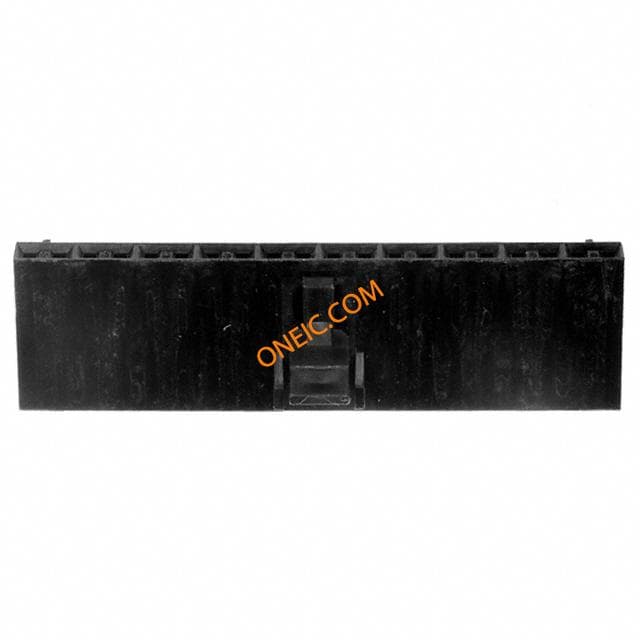

Conn Housing RCP 20 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 20POS .1" POL UNLOAD Headers & Wire Housings HSG REC 1X10C P/L .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 20Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm 节距 20 路 直 母 电缆安装 PCB 连接器外壳 20 MTE RCPT HSG SR LATCH .100
