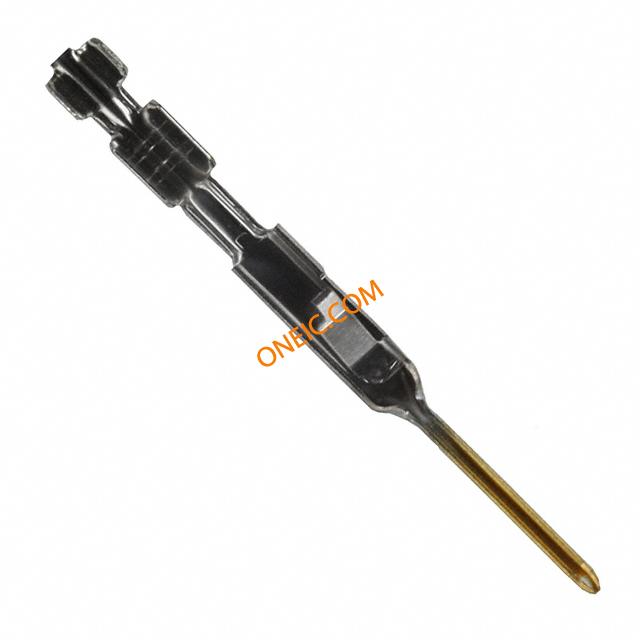

104505-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Headers & Wire Housings MTE PIN 22-26AWG 104505-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 12500 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 接触电阻 | 12 mΩ | 输入电阻 | 5000 |
| 钳位电压 | 750 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 压力（PSI） | 标准 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | 12500 | 绝缘高度 | 是 |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 绝缘直径 | .91 – 1.37 mm [ .035 – .054 in ] |
| 镀层厚度（通用） | 锡铅 | 触头长度-柱 | 信号（数据）/电源 |
| 接触镀层厚度 | 30µin (0.76µm) | 触点镀层厚度 - 柱（配合端） | 50 – 100 |
产品信息
| 连接器性别 | PIN | 系列 | AMPMODU MTE |
| 产品子类型 | Contacts | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
相关型号
103653-4
te connectivity / amp
Conn Housing PL 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 5POS .1" POL UNLOAD 5 way MTE Pin Housing Headers & Wire Housings PIN ASSEMBLY 5P Conn Housing PL 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PIN, 5WAY Housing;Thermoplastic;Pin;Single;0.1in.;UL94V-0;Black;5 TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 公 电缆安装 PCB 壳体 05 MTE SHRD PIN HSG SR LATCH
1-103653-5
te connectivity / amp
Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 16POS .1" POL UNLOAD Headers & Wire Housings 16 SHRD PIN HSG SR LATCH Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE SHRD PIN HSG SR LATCH
1-103653-1
te connectivity / amp
Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 12POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 12P Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 12 路 直 公 电缆安装 PCB 连接器外壳 12 MTE SHRD PIN HSG SR LATCH
104503-3
te connectivity / amp
Conn Housing PL 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 4POS .100 UNLOADED Conn Housing PL 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm 节距 4 路 直 公 电缆安装 PCB 连接器外壳 04 MTE PIN HSG SR RIB .100CL
104503-2
te connectivity / amp
Conn Housing PL 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 3POS .100 UNLOADED Headers & Wire Housings 3P MTE PIN HOUSING Conn Housing PL 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 3POS, 2.54MM AMPMODU03MTEPINHSGSRRIB.100CL 03 MTE PIN HSG SR RIB .100CL
1-103653-0
te connectivity / amp
Conn Housing PL 11 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 11POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 11P 11 MTE SHRD PIN HSG SR LATCH
1-104503-2
te connectivity / amp
Conn Housing PL 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 13POS .100 UNLOAD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE PIN HSG SR RIB .100CL
1-103653-3
te connectivity / amp
Conn Housing PL 14 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings 14 SHRD PIN HSG SR LATCH .100 AMPMODU Headers, Housings & Contacts CONN PLUG 14POS .1" POL UNLOAD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 14Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 14 路 直 公 电缆安装 PCB 连接器外壳 14 MTE SHRD PIN HSG SR LATCH
103653-8
te connectivity / amp
Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 9P Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 9 路 直 公 电缆安装 PCB 连接器外壳 09 MTE SHRD PIN HSG SR LATCH
104503-6
te connectivity / amp
Conn Housing PL 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 7POS .100 UNLOADED Headers & Wire Housings RCPT 7P .100 UNLOAD .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 7 路 直 公 电缆安装 PCB 连接器外壳 07 MTE PIN HSG SR RIB .100CL
1-104503-1
te connectivity / amp
Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 12POS .100 UNLOADED Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorHousingConnector Style = PlugContact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MTE PIN HSG SR RIB .100CL
1-103653-6
te connectivity / amp
Conn Housing PL 17 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 17POS .1" POL UNLOAD Headers & Wire Housings 17 SHRD PIN HSG SR LATCH 17 MTE SHRD PIN HSG SR LATCH 17 MTE SHRD PIN HSG SR LATCH Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
104503-1
te connectivity / amp
Conn Housing PL 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 2POS .100 UNLOADED Headers & Wire Housings 02P PIN HSG .100CL TE Connectivity AMPMODU MTE 系列 2.54mm 节距 2 路 直 公 电缆安装 PCB 连接器外壳 02 MTE PIN HSG SR RIB .100CL
1-104503-4
te connectivity / amp
Conn Housing PL 15 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 15POS .100 UNLOAD Headers & Wire Housings RCPT 15P .100 UNLD Conn Housing PL 15 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 15Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 15 MTE PIN HSG SR RIB .100CL

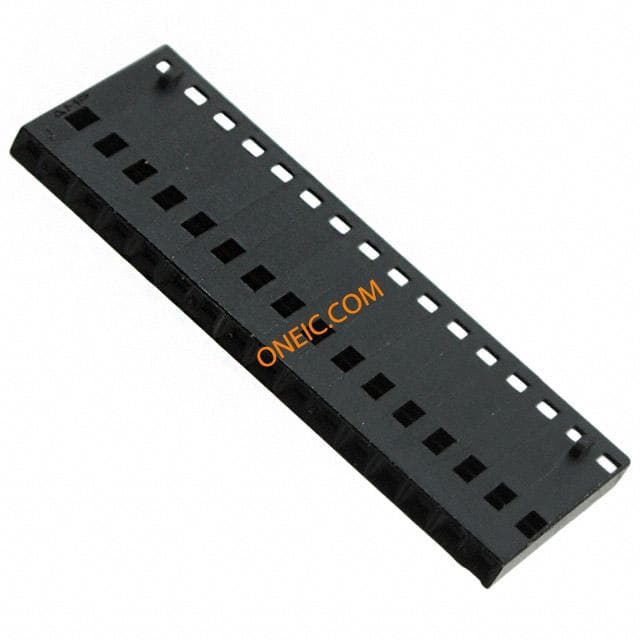

1-104503-5
te connectivity / amp
Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 16POS .100 UNLOAD Headers & Wire Housings RCPT 16P .100 UNLOAD Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 Position Single Row 2.54 mm Spacing PIN Header Housing Connector TE Connectivity AMPMODU MTE 系列 2.54mm 节距 16 路 直 公 电缆安装 PCB 连接器外壳 16 MTE PIN HSG SR RIB .100CL
104503-8
te connectivity / amp
Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 9POS .100 UNLOADED Headers & Wire Housings RCPT 9P .100 UNLOAD 09 MTE PIN HSG SR RIB .100CL 09 MTE PIN HSG SR RIB .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-103653-9
te connectivity / amp
Conn Housing PL 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 20POS .1" POL UNLOAD Headers & Wire Housings 20 SHRD PIN HSG SR LATCH 20 MTE SHRD PIN HSG SR LATCH 20 MTE SHRD PIN HSG SR LATCH Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103653-1
te connectivity / amp
Conn Housing PL 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .1" POL UNLOAD 2 way MTE Pin Housing Headers & Wire Housings PIN ASSEMBLY 2P Conn Housing PL 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PIN, 2WAY Housing;Thermoplastic;Pin;Single;0.1in.;UL94V-0;Black;2 TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 2 路 直 母 电缆安装 PCB 壳体 02 MTE SHRD PIN HSG SR LATCH
103653-6
te connectivity / amp
Conn Housing PL 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 7POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 7P Conn Housing PL 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 7Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHSGCOMP,07MTESHRDPINHSGSRLATCH TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 7 路 直 公 电缆安装 PCB 连接器外壳 07 MTE SHRD PIN HSG SR LATCH

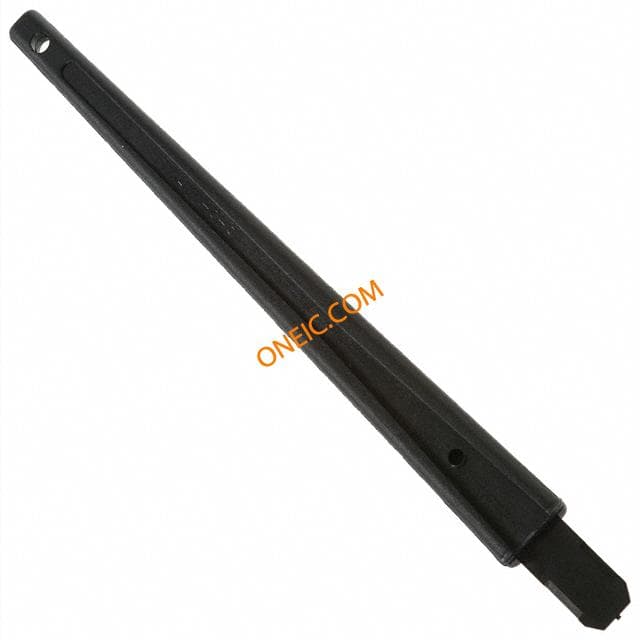

843477-1
