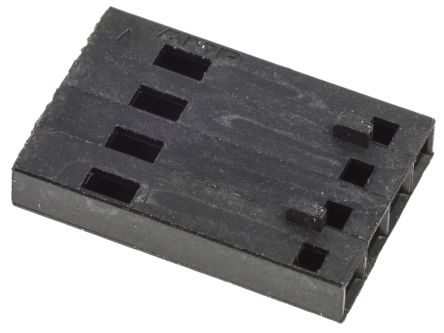

点击放大查看
104503-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 4POS .100 UNLOADED Conn Housing PL 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm 节距 4 路 直 公 电缆安装 PCB 连接器外壳 04 MTE PIN HSG SR RIB .100CL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 触头类型 | Male Pin |
| 极化 | Ribbed | 第二连接器 | Without |
| 基体材料 | :Thermoplastic | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | :- | 排数 | 1 |
| 封装形式 | Pin | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 配接方向 | With |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 中心触点材料 | 2.54 [.100] |
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | PL | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | 适用产品/相关产品 | :MTE Headers |
