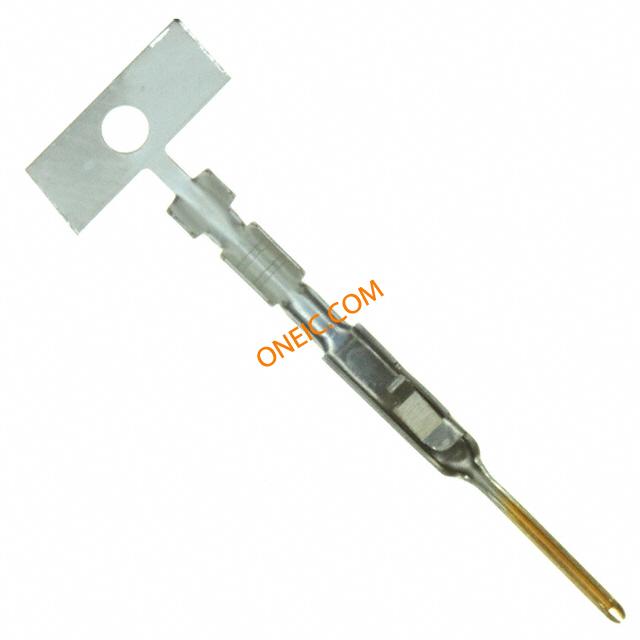

5-104505-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP MTE Contact,pin,0.12-0.40mm² Headers & Wire Housings PIN 26-22 PHBZ/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPIN22-26AWGPLTD TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN 22-26 AWG PLTD |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A34238CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 12500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
电气参数
| 输入端 | 50 – 100 | 额定电压 | 300 VAC |
| 供电电压 | 300 | 接触电阻 | 12mΩ |
| 输入电阻 | 5000 | 钳位电压 | 750 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 最小供电电压 | 300VAC | ||
机械参数
| 间距 | Not Required mm | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 电缆直径 | 0.4mm² | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 插入件材料 | 磷青铜 | 操作力 | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 包装数量 | 12500 | 端接排数 | 压接 |
| 绝缘高度 | Yes | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | .91 – 1.37 mm [ .035 – .054 in ] |
| 镀层厚度（通用） | 锡 | 触头长度-柱 | 信号（数据）/电源 |
| 端子螺钉表面处理 | 哑光 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 22AWG | ||
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | AMPMODU | 产品子类型 | Contacts |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
