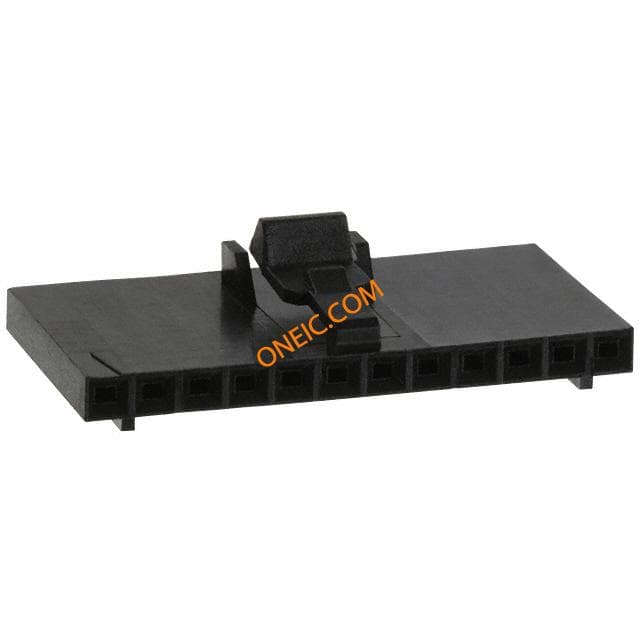

1-104503-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 12POS .100 UNLOADED Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorHousingConnector Style = PlugContact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MTE PIN HSG SR RIB .100CL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 |
| 保护额定电压（VPR） | 600 VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 长度 | 30.42 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 22-30 AWG | 触头类型 | Male Pin |
| 极化 | Ribbed | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 安装样式 | 不带 |
| 排数 | 1 | 封装形式 | Pin |
| 高度（英寸） | 2.48 | 插入件材料 | 磷青铜 |
| 壳体材料 | Thermoplastic | 包装数量 | 1 |
| 面板安装类型 | 不带 | 端接样式 | 插针 |
| 配接方向 | With | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 接触件 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [.100] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | PL | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 工作温度 | -65 – 105 | ||
