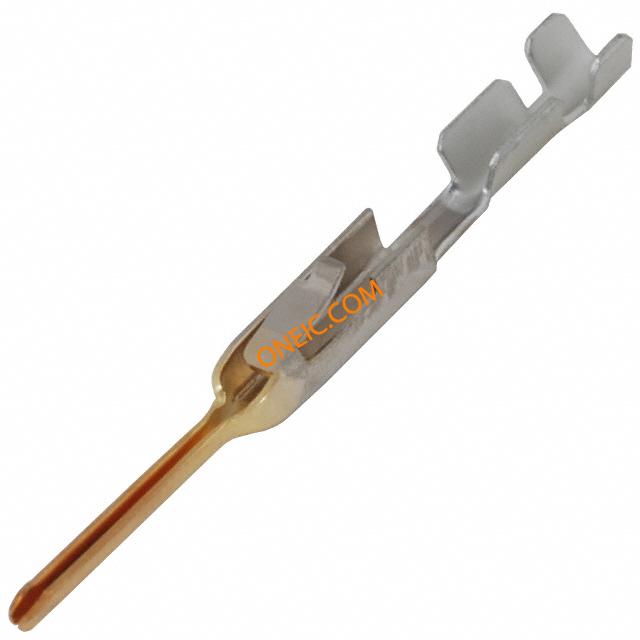

104505-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 15GOLD CRIMP Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP MTE PIN LP |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 接触电阻 | 12 mΩ | 输入电阻 | 5000 |
| 钳位电压 | 750 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 压力（PSI） | 标准 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | 500 | 绝缘高度 | 是 |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 绝缘直径 | .91 – 1.37 mm [ .035 – .054 in ] |
| 镀层厚度（通用） | 锡铅 | 触头长度-柱 | 信号（数据）/电源 |
| 接触镀层厚度 | 15µin (0.38µm) | 触点镀层厚度 - 柱（配合端） | 50 – 100 |
产品信息
| 连接器性别 | PIN | 系列 | AMPMODU MTE |
| 产品子类型 | Contacts | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
