点击放大查看

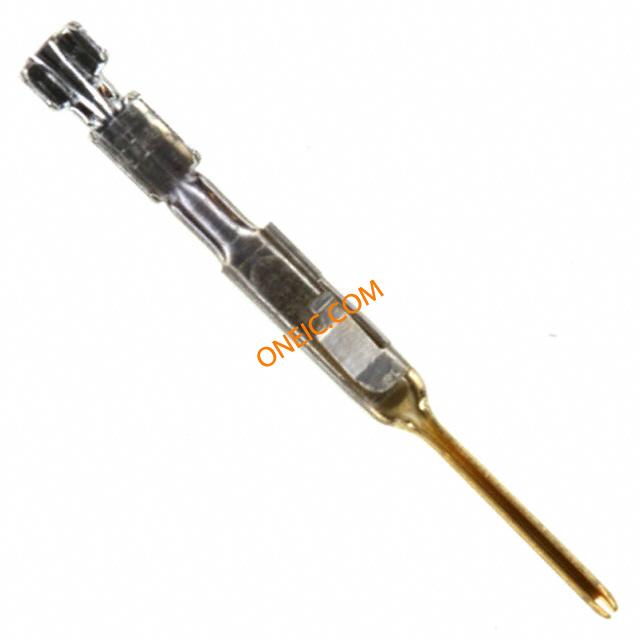

104505-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Contact; Pin; MTE (IDC); 26 to 22 AWG Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT MTEPINCONTSTRIP,MTEPINLP AMPMODU 30 Gold 26-22 AWG Crimp Pin IDC Contact ER - Contact; Pin; MTE (IDC); 26 to 22 AWG MTE PIN LP |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 300 VAC | 输出电流 | :3A |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 触头材料 | Phosphor Bronze | 包装数量 | :1 |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | PIN | 系列 | AMPMODU MTE |
| 产品子类型 | Contacts | 有铅工艺兼容 | :No |
环境参数
| 测试温度 | :No | 工作温度 | - 65 C to + 105 C |
