2-103653-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 24 MTE SHRD PIN HSG SR LATCH |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 | 保护额定电压（VPR） | 600 VACrms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 6.604 mm [ .26 in ] | 长度 | 63.37 mm [ 2.49 in ] |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 触头类型 | Male Pin | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 排数 | 1 | 封装形式 | Pin |
| 插入件材料 | 磷青铜 | 锁定特性 | Detent Latching |
| 壳体材料 | Thermoplastic | 包装数量 | 1 |
| 端接样式 | 插针 | 配接方向 | With |
| 触点数 | 24 | 接触件端接 | Crimp |
| 位数 | 24 | 兼容外壳尺寸（如TM-700等） | 公端 |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 [.100] |
| 典型触点布局 | 同轴 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
相关型号
5-104506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32 AWG TIN Headers & Wire Housings MTE PIN LP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN LP
2-104257-3
te connectivity / amp
Conn IDC Connector RCP 24 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 24POS SNGL .100 CRIMP Headers & Wire Housings RCPT 24P SNGL .100 Conn IDC Connector RCP 24 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 24Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 24 MTE RCPT HSG SR LATCH .100
5-104506-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG 15GOLD CRIMP Headers & Wire Housings PIN 32-28 AWG 5-104506-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU Contact;Pin;MTE(IDC);PhosphorBronze;32-28AWG;300VAC;3A(Contact) MTE PIN LP
5-104506-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 28-32 AWG TIN Headers & Wire Housings MTE PIN 28-32 AWG Contact PIN Crimp ST Cable Mount Strip Search Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 28-32 AWG PLTD
5-104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP MTE Contact,pin,0.12-0.40mm² Headers & Wire Housings PIN 26-22 PHBZ/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPIN22-26AWGPLTD TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Pin Crimp Contact Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, CRIMP, PLUG, 26-22AWG INTRCHANGCONTACT;PIN;WIRECRIMP(SNAPIN);26-22AWG TE Connectivity AMPMODU MTE 系列 压接接线端子, 镀金镀镍触点 MTE PIN LP
5-104505-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 PHBZ/SN Conn Contact PIN 1 POS Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, SOCKET, 26-22AWG, CRIMP Contactmalecrimp26-22AWGAmpModu TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, PIN, 26-22AWG, CRIMP AMPMODUPinContact,MTE(IDC)Series,26-22AWG TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN LP
5-104506-7
te connectivity / amp

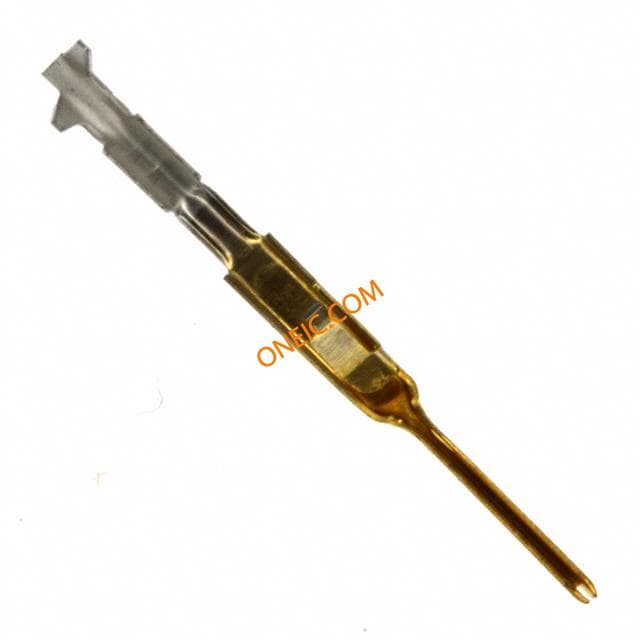

Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG 30GOLD CRIMP AMPMODU MTE(IDC) Pin Contact 32-28 AWG Headers & Wire Housings PIN 32-28 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU Contact;Pin;MTE(IDC);PhosphorBronze;32to28AWG;300VAC;3A(Contact) TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金触点 MTE PIN LP
