5-103970-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 5X4 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装数量 | 55 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 保护额定电压（VPR） | 600 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 2.49 mm [ .098 in ] | 长度 | 50.55 mm [ 1.99 in ] |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 壳体颜色 | 黑色 | 导线线规 | 22-26 AWG |
| 排间距 | 2.54 mm | 端接方式 | 15 mΩ |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 操作力 | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 55 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 绝缘直径 | 1.37 mm [ .054 in ] |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 与接头配合 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 带有 |
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Headers |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
相关型号
5-103634-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 4POS PCB TIN Header 4 way pin 2.54mm IDC AmpModu Headers & Wire Housings LATCHING HDR SHRD 4P w/o hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM AMPMODUMTER/AHDAY,04MTEHDRSRRALATCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRRA LATCH.100CL LF
5-103949-3
te connectivity / amp
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 4X4 MTE SHRD PIN SR LATCH .100 Headers & Wire Housings 4X4 MTE SHRD PIN SR LATCH .100 .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = PlugContact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103669-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 4POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH W/HLDWN

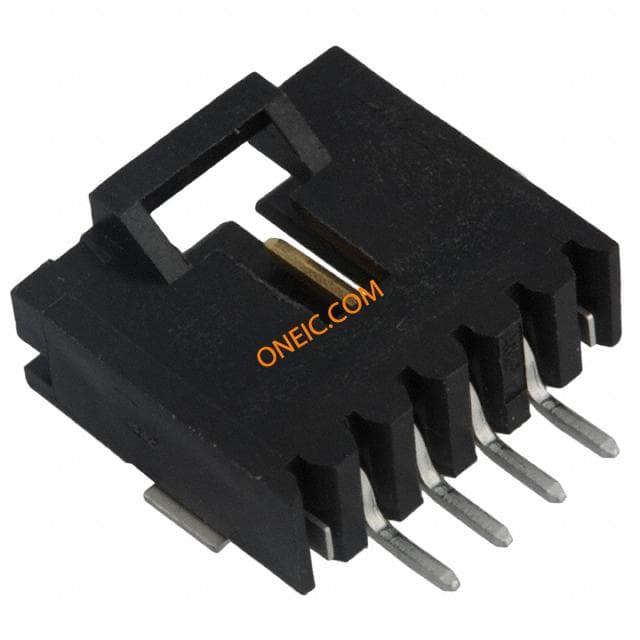

5-147278-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS R/A SMD GOLD Headers & Wire Housings PIN 1X04C R/A SMT Conn Shrouded Header HDR 4 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;4;3A;600V;MTE(IDC);1;RightAngle;0.100in.;5000Megohms 04 MTE HDR SRRA SFMNT .100CL

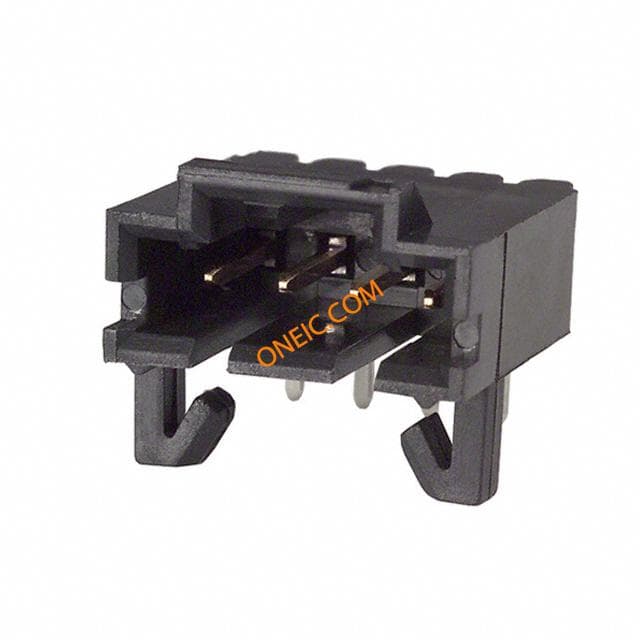

5-103673-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 4POS 15AU Header 4 way pin 2.54mm IDC AmpModu Headers & Wire Housings LATCHING HDR SHRD 4P with hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4 MTE HDR SRRA LATCH W/HLDWN
5-103908-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Headers & Wire Housings LTCHNG HDR W/SWAGE 4 .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 4POS 30AU TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM Header;Shrouded;Vertical;Brass;Thermoplastic;4;0.1in.;Gold;0.025in. TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH W/HLDWN

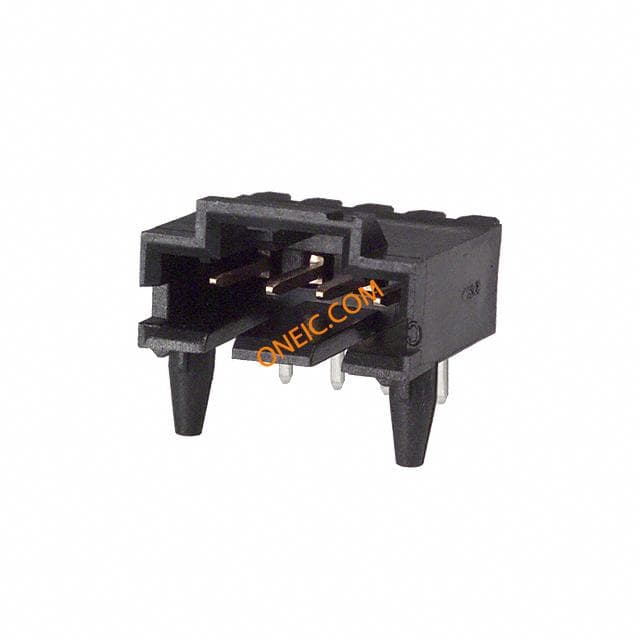

5-104361-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 4POS 15AU Headers & Wire Housings HDR HI TEMP 4 POS with swage Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH W/HLDWN
5-103953-3
te connectivity / amp
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE PIN SR RIBBED .100CL 5X4 MTE PIN SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103954-3
te connectivity / amp
5X4 MTE PIN SR RIBBED .100CL Headers & Wire Housings 5X4 MTE PIN SR RIBBED .100CL
5-104363-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 4POS 15AU TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 4WAY MTEHI-TEMPHDRASSY,04MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH .100CL
5-103955-3
te connectivity / amp
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE PIN SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-1375582-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADR 4POS IDC SMD GOLD Headers & Wire Housings 04 MTE VERTICAL SMT HDR 15 AU 04 MTE VERTICAL SMT HDR 15 AU
5-103735-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 4POS 30AU TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM MTEHEADERASSY,04MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH .100CL
5-103944-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 4POS .100 POLAR TIN Headers & Wire Housings PIN ASSEMBLY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 4POS, 2.54MM HOUSINGPLUGCONNECTOR,4P,1ROW,MTE,3A,600V TE Connectivity AMPMODU MTE 系列 4路 2.54mm节距 公 IDC 连接器 , 电缆安装 4X4 MTE SHRD PIN SR POL .100CL
5-103952-3
te connectivity / amp
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 5X4 MTE PIN SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts 5X4 MTE PIN SR RIBBED .100CL 5X4 MTE PIN SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-104450-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS VERT .100 TIN Headers & Wire Housings 04 MTE HDR SRST LATCH W/HLDWN Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH W/HLDWN
5-103951-3
te connectivity / amp
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 4POS .100 22-26 15AU Headers & Wire Housings 5X4 MTE PIN SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - PinHousing Accepts Contact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X4 MTE PIN SR RIBBED .100CL
5-103945-3
te connectivity / amp
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 4POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 4P Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 4路 2.54mm节距 公 IDC 连接器 , 电缆安装 4X4 MTE SHRD PIN SR LATCH .100

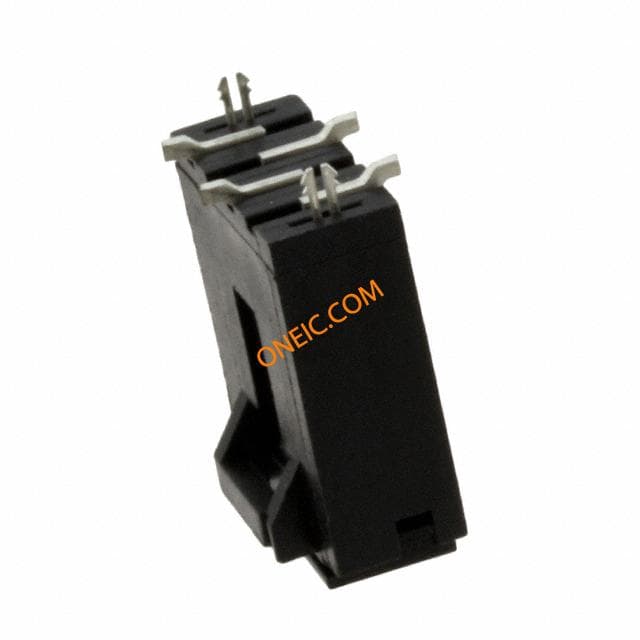

5-1375583-3
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS VERT SMD GOLD AMPMODUMTEVerticalHeader,4Pos.,SingleRow AMPMODU MTE Vertical Header; 4 Pos.; Single Row; .100 CL; Surface Mount Headers & Wire Housings HDR 4 POS SMT 30 AU Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTEVerticalHeader,4Pos.,SingleRow,.100CL,SurfaceMount 04 MTE VERTICAL SMT HDR 30 AU

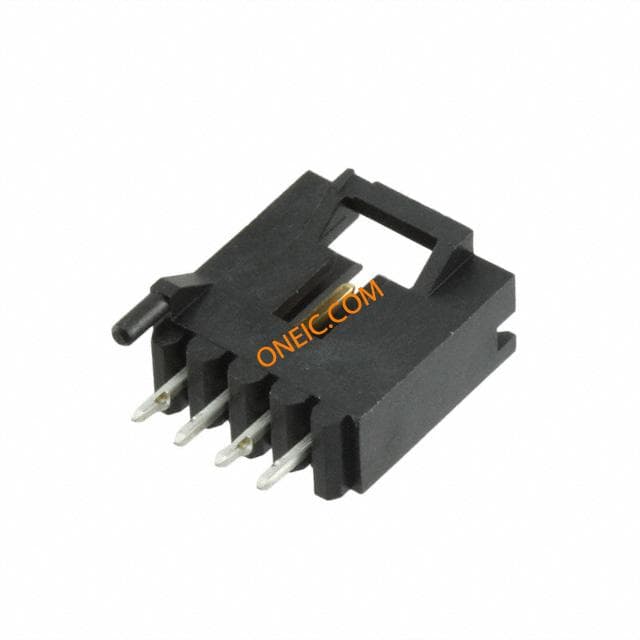

5-104809-3
