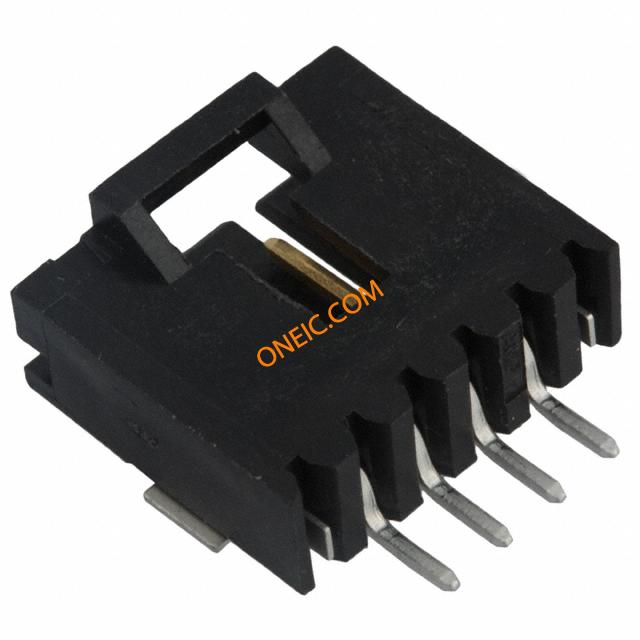

5-147278-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS R/A SMD GOLD Headers & Wire Housings PIN 1X04C R/A SMT Conn Shrouded Header HDR 4 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;4;3A;600V;MTE(IDC);1;RightAngle;0.100in.;5000Megohms 04 MTE HDR SRRA SFMNT .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A100868CT |
| 零件号别名 | 374-1447 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mohm |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 深度 | 13.59 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6.65 mm |
| 长度 | 15.24 mm [ .6 in ] | 包装方式 | Tape & Reel (TR) |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Surface Mount, Right Angle | 行程角度 | Right |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 触点时序 | Without | 安装样式 | Surface Mount |
| 排数 | 1 | 壳体镀层 | Tin |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 15.24 mm |
| 包装数量 | 300 | 面板安装类型 | 不带 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | SMD | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 母端护套组件 | 触头长度-柱 | 3.05 mm [ .12 in ] |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 表面贴装焊盘尺寸 | Without |
| 端子柱长度 | 5.84 mm [ .23 in ] | 接触镀层厚度 | 15µin (0.38µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 产品特性 | Board Lock, Solder Retention | 制造商全称 | AMPMODU/MTESeries |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
