点击放大查看

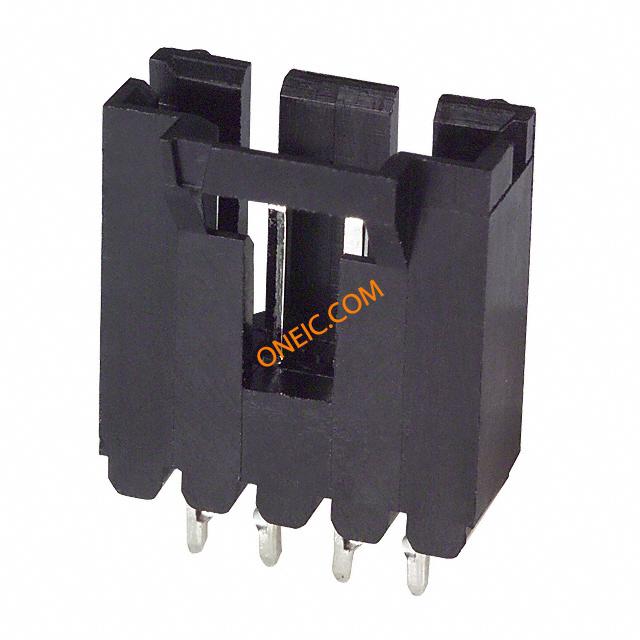

5-103669-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 4POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 4 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MTE HDR SRST LATCH W/HLDWN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 42 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 最大额定电流 | 3A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MTE | 产品特性 | :Swaged Retention Tail |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
