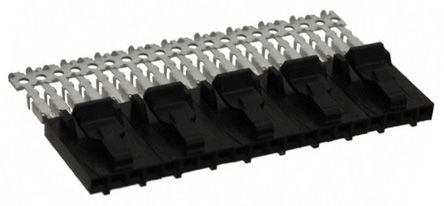

点击放大查看
5-103957-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 15AU Housing FH 5x4 way Rec 2.54mm AmpModu Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 4POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MTE,AMPMODU,4POSITION,5X4,LATCH TE Connectivity AMPMODU MTE 系列 4路 2.54mm节距 母 IDC 连接器 , 电缆安装 5X4 MTE RCPT SR LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 55 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85411000 | ||
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3A |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 重量 | 0.002 |
| 包装方式 | Strip | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 22-26 AWG | 排间距 | 2.54 mm |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 10.1 mm |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 接触件端接 | :IDC / IDT |
| 位数 | 4 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMPMODU MTE | 产品特性 | Closed End |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Headers |
环境参数
| 工作温度 | +105°C | ||
