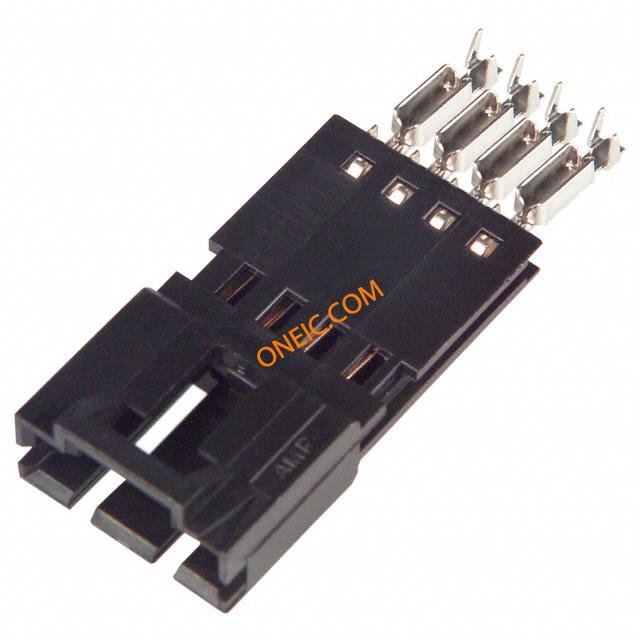

5-103945-3

点击放大查看

5-103945-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 4POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 4P Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 4POS, 2.54MM TE Connectivity AMPMODU MTE 系列 4路 2.54mm节距 公 IDC 连接器 , 电缆安装 4X4 MTE SHRD PIN SR LATCH .100
分类
连接器解决方案板对板连接器板对板连接器

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量44工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366910

电气参数

量程（°/s）:TE - AMPMODU MTE Series最大额定电流3 A

机械参数

颜色Black间距2.54 mm
重量0.00001包装方式Tube
导线类型Ribbon Cable导线线规22-26 AWG
排间距2.54 mm端接方式IDT
触头类型Male Pin安装类型Free Hanging (In-Line)
连接器类型Plug接触镀层Gold Over Nickel
安装样式Wire排数1
触头材料Phosphor Bronze壳体材料Thermoplastic
电缆端接方式IDC端接样式Crimp
第一触头极性Pin (Male)触点数4
接触件端接:IDC / IDT位数4
接触镀层厚度15µin (0.38µm)

产品信息

类型IDC Connector连接器性别PIN
系列AMPMODU MTE产品特性Closed End
产品子类型Headers

环境参数

工作温度- 65 C to + 105 C

文档与媒体

在线文档
5-103945-3?RQPN=5-103945-3
