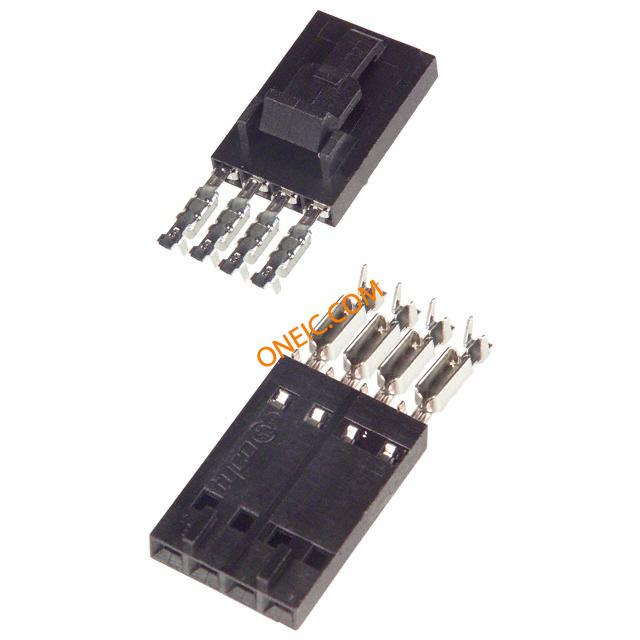

103957-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,5X4MTERCPTSRLATCH.100CL 5X4 MTE RCPT SR LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 55 | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 接触电阻 | 15 mΩ |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 600 VAC |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 5.08 mm [ .2 in ] | 长度 | 50.55 mm [ 1.99 in ] |
| 锁定类型 | 锁闩 | 包装方式 | Tube |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 黑色 |
| 导线线规 | 22-26 AWG | 排间距 | 2.54 mm |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 压力（PSI） | 标准 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 55 | 面板安装类型 | 不带 |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 绝缘直径 | 1.37 mm [ .054 in ] |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 与接头配合 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 带有 |
| 接触件镀层 - 插柱（配合端） | 亮光 | ||
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 制造商全称 | AMPMODU/MTESeries |
| 产品子类型 | Headers | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
相关型号

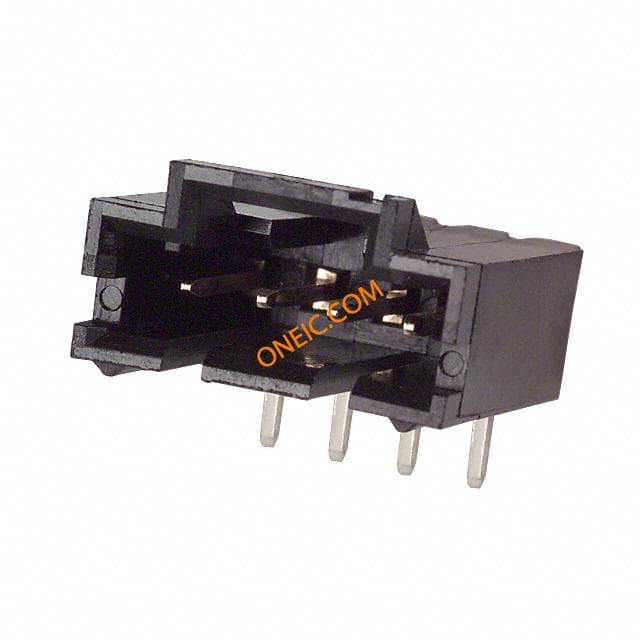

5-103635-3
