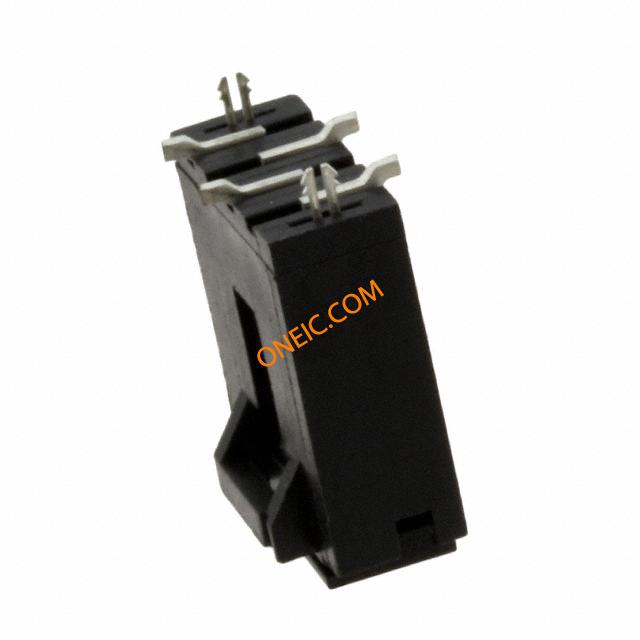

5-1375583-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS VERT SMD GOLD AMPMODUMTEVerticalHeader,4Pos.,SingleRow AMPMODU MTE Vertical Header; 4 Pos.; Single Row; .100 CL; Surface Mount Headers & Wire Housings HDR 4 POS SMT 30 AU Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTEVerticalHeader,4Pos.,SingleRow,.100CL,SurfaceMount 04 MTE VERTICAL SMT HDR 30 AU |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A100870CT |
| 零件号别名 | 374-1496 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 开关功能 | Latched | 供电电压 | 250 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 长度 | 0.5in | 包装方式 | Tape & Reel (TR) |
| 壳体颜色 | 黑色 | 电缆类型 | 分离式导线 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.024" |
| 安装类型 | Surface Mount | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 触点时序 | Without | 安装样式 | 带有 |
| 排数 | 1 | 电路板厚度 | 1.57 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 0.5" |
| 面板安装类型 | 垂直 | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 0.055×0.089" | 接触长度 - 配合 | 0.230" (5.84mm) |
| 表面贴装焊盘尺寸 | Without | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU/MTE |
| 产品特性 | Board Lock | 制造商全称 | AMPMODU/MTESeries |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
