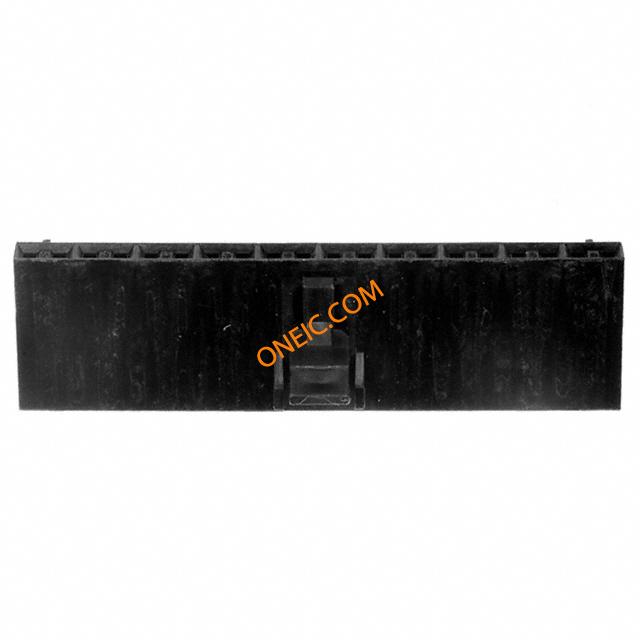

1-104257-9

点击放大查看

1-104257-9

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 20 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 20POS .1" POL UNLOAD Headers & Wire Housings HSG REC 1X10C P/L .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 20Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm 节距 20 路 直 母 电缆安装 PCB 连接器外壳 20 MTE RCPT HSG SR LATCH .100
分类
光电子学LED照明LED照明模块
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格500
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMPMODU MTE Series

机械参数

颜色Black间距2.54 mm
重量0包装方式Bulk
导线线规22-30 AWG排间距2.54 mm
触头类型Female Socket极化Latched
第二连接器With外壳颜色Black
安装类型Straight连接器类型Crimp, Insulation Displacement Crimp (IDC)
接触镀层Gold紧固类型Latch Lock
排数1封装形式Receptacle
触头材料:-壳体材料Thermoplastic
第一触头极性Socket (Female)配接方向With
触点数20接触件端接Crimp
位数20中心触点材料2.54 [.100]

产品信息

备注Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta类型Housing
连接器性别RCP系列MTE
预加载No编码、键控No
产品子类型Housing
