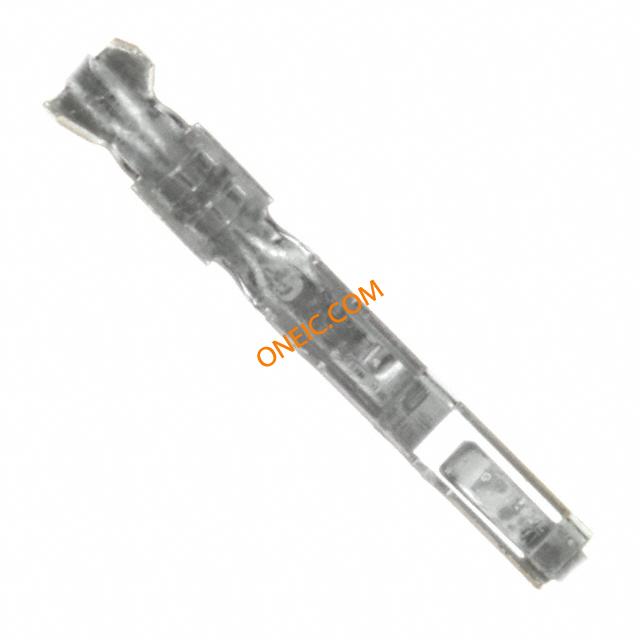

点击放大查看
0901190109
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A |
| 分类 |
商业参数
| 其他名称 | WM2581CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3 A |
| 最小供电电压 | 350VAC | ||
机械参数
| 深度 | 2.1 mm | 间距 | Not Required mm |
| 高度 | 1.9 mm | 重量 | 0.17 g |
| 包装方式 | Tape and Reel | 导线线规 | 22-24 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 封装形式 | tape |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 13.15 mm | 包装数量 | 40000 |
| 连接器 - 电缆 | contact | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 40µin (1.02µm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 40000 | 类型 | Contact |
| 连接器性别 | SKT | 适配器系列 | C-Grid III |
| 单元数量 | 20000 | ||
