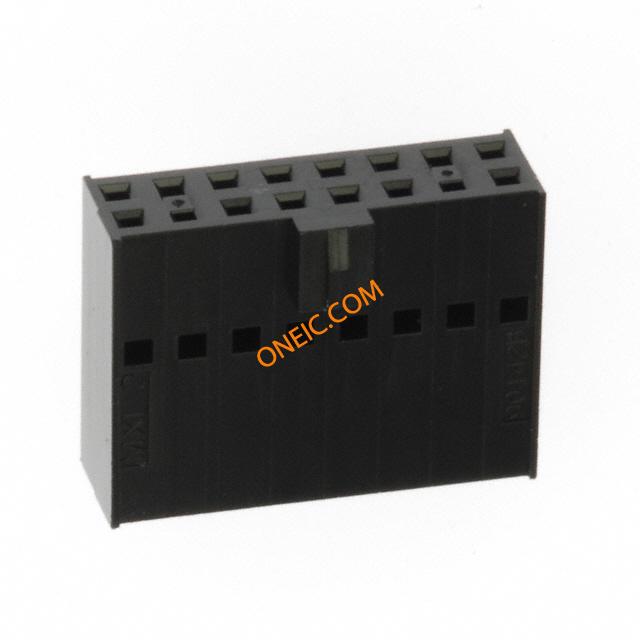

0901420016
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 16 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 16POS .100" DUAL Plug; wire-board; C-Grid III; female; PIN:16; w/o terminals; 2x8 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 350V AC | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 350VDC|350VAC | 最小供电电压 | 350V |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 7.72 mm |
| 重量 | 1.24 g | 包装方式 | Bag |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 柱间距 | 2.54mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 2 | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 20.32 mm | 包装数量 | 2000 |
| 连接器 - 电缆 | plug | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 第一连接器安装特征 | 2x8 | ||
产品信息
| SPG | 2000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | F |
| 适配器系列 | C-Grid III | 单元数量 | 1 |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

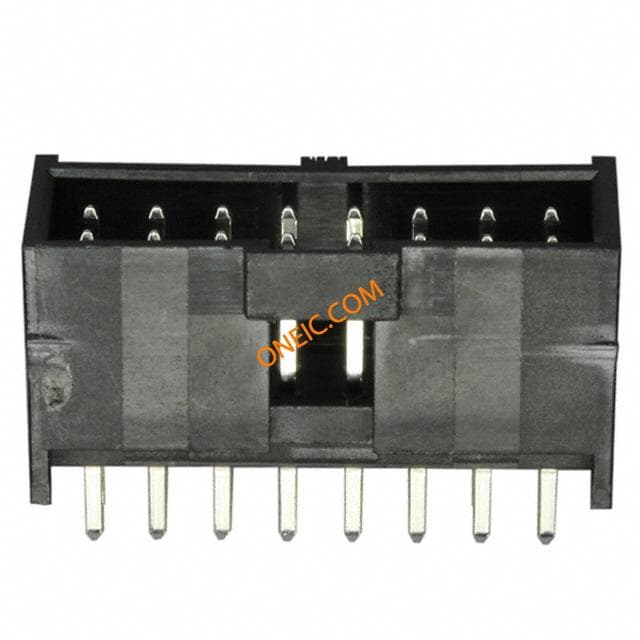

0901301116
molex
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 16POS .100" STR TIN

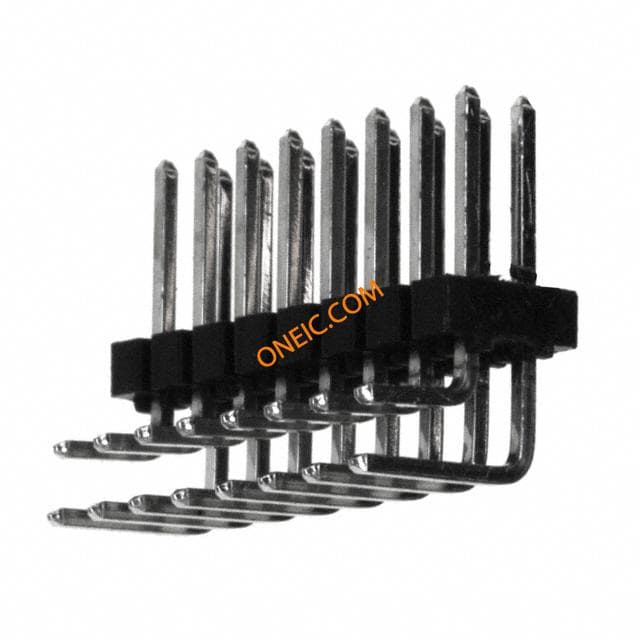

0901220128
molex
Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 16POS .100" R/A TIN
0901310768
molex
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 16POS .100" STR GOLD
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
76650-0178
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III DUAL WTB Headers & Wire Housings CGRID3 WTB 2ROW KIT Kit Description:Dual Row Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:143 C-GRID III CONNECTOR KIT DUAL ROW VERT HEADER & RECEPT
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

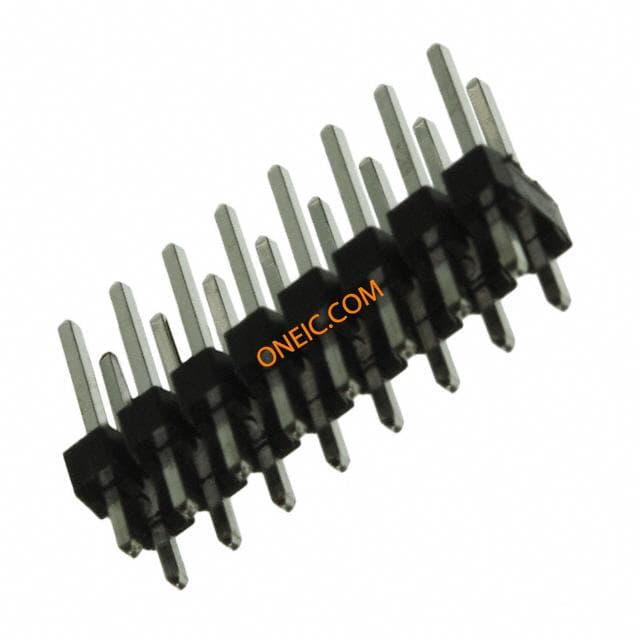

0901310128
Molex
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 16POS .100" STR TIN Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST
90130-1216
Molex Connector Corporation
CONN HEADER 16POS .100" STR GOLD Molex 90130 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings C-GRID III 16 CKT SH Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray HEADER, VERTICAL, 2ROW, 16WAY Header, 16 way dual row Friction PCB header 2 x 8P, 90130-1216, Molex Molex C-GRID III 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔

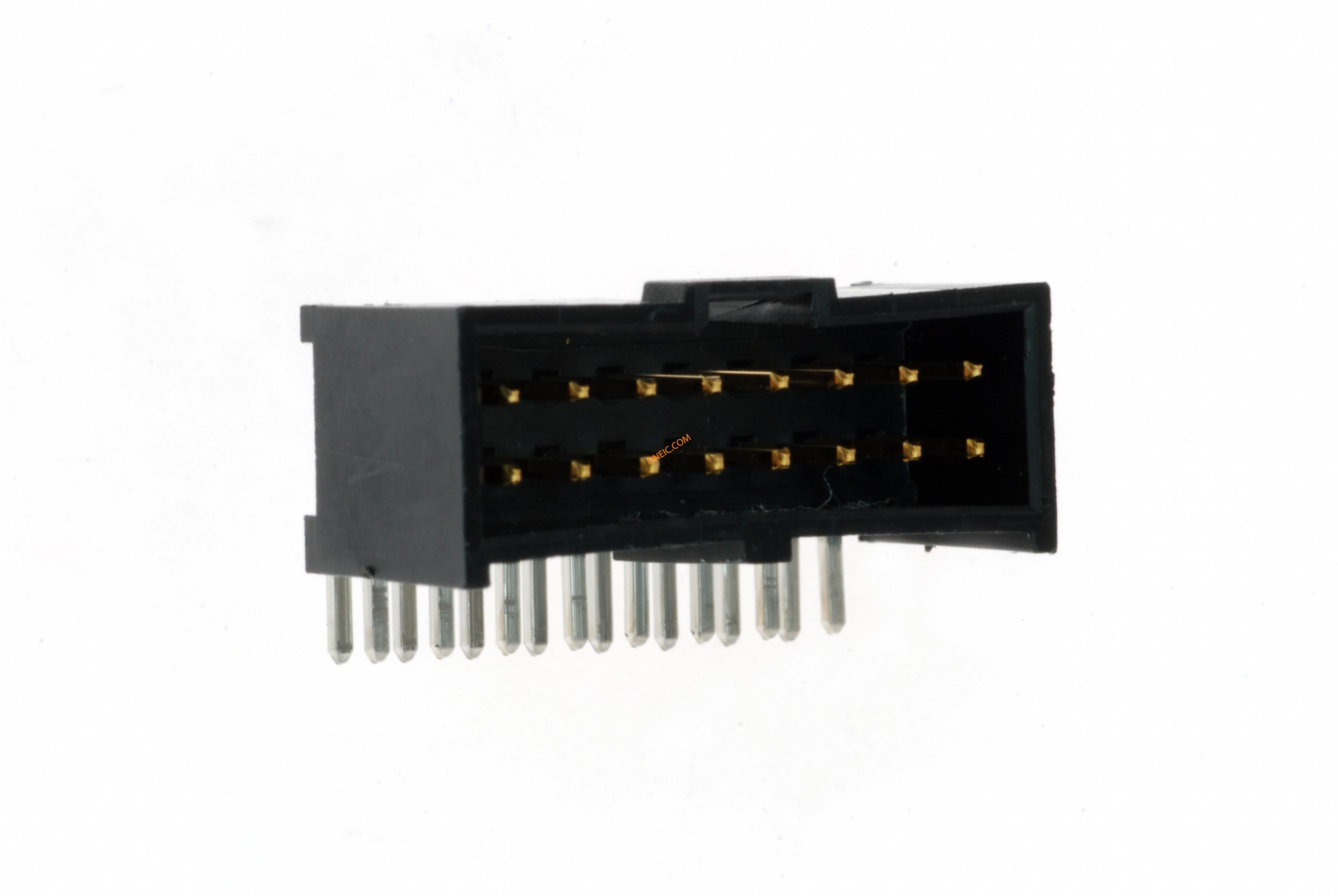

90130-3216
Molex Connector Corporation
CONN HEADER 16POS .100" R/A GOLD Molex 90130 Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 16P R/A DR SHRD AU Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 2ROW, 16WAY PCB header 2 x 8P, 90130-3216, Molex Molex C-GRID III 系列 16路 2.54mm节距 (2排) 直角 PCB 针座 , 焊接端接, 3A, 通孔

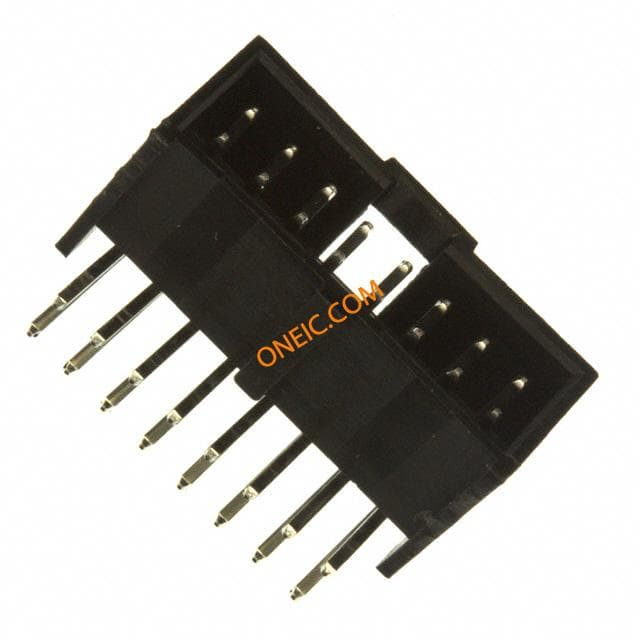

90130-3116
Molex Connector Corporation
CONN HEADER 16POS .100" R/A TIN Molex 90130 Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 16P R/A DR SHRD TIN Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔

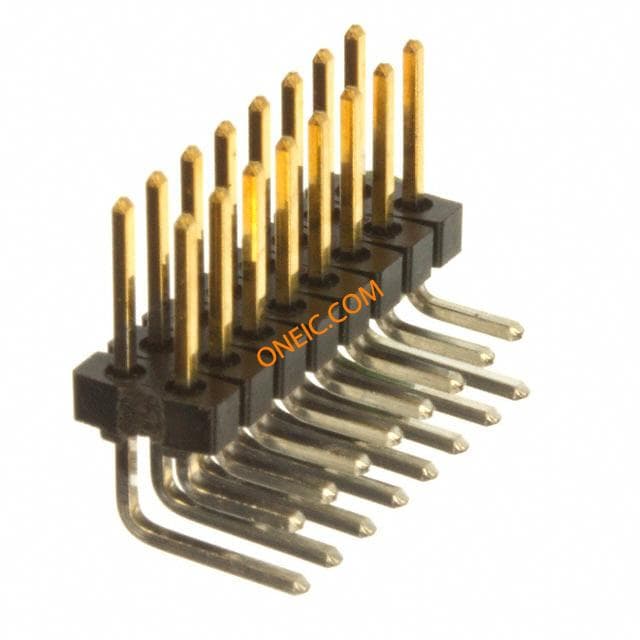

90122-0768
