0901220128
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 16POS .100" R/A TIN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 350V | ||
机械参数
| 颜色 | Black | 深度 | 13.54 |
| 间距 | 2.54 mm | 高度 | 6.15 |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 20.32 |
| 触点数 | 16 | 位数 | 16 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 160µin (4.06µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
文档与媒体
相关型号
0901420016
molex
Conn Housing F 16 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 16POS .100" DUAL Plug; wire-board; C-Grid III; female; PIN:16; w/o terminals; 2x8
76650-0179
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III R/A DUAL WTB Headers & Wire Housings CGRID3 R/A 2ROW KIT COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.54MM PITCH 350V 24-22 WIRE ... Kit Description:Dual Row Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:139 C-GRID III CONNECTOR KIT DUAL ROW RT ANGLE HEADER & RECEPT

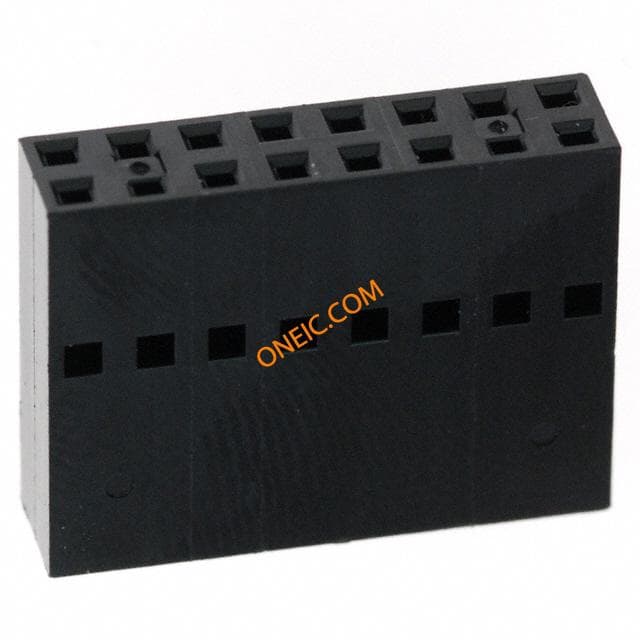

90143-0016
