点击放大查看

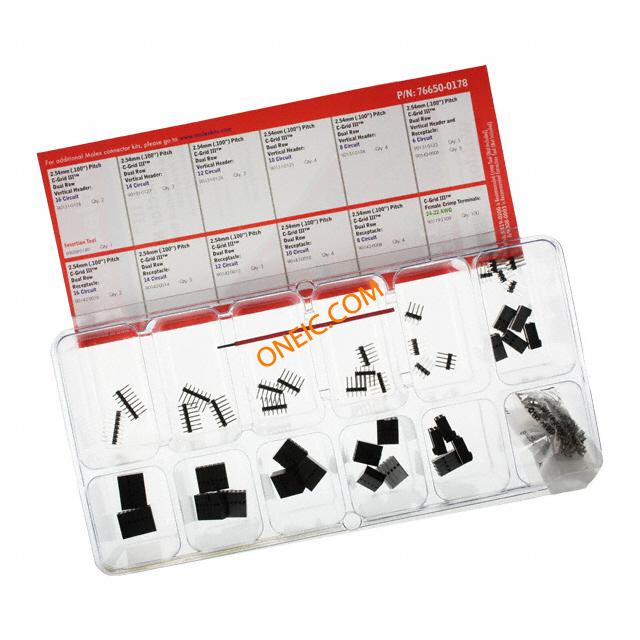

76650-0179
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III R/A DUAL WTB Headers & Wire Housings CGRID3 R/A 2ROW KIT COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.54MM PITCH 350V 24-22 WIRE ... Kit Description:Dual Row Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:139 C-GRID III CONNECTOR KIT DUAL ROW RT ANGLE HEADER & RECEPT |
| 分类 |
商业参数
| 商标名 | C-Grid | 标准包装规格 | 1 |
| 零件号别名 | 0766500179 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 350 V | 最大额定电流 | 3 A |
机械参数
| 间距 | 2.54 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 24-22 | 安装类型 | Right |
| 连接器类型 | Headers and Receptacles | 安装样式 | Wire |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
产品信息
| 系列 | 76650 | 值 | 139 pcs - 6, 8, 10, 12, 14, 16 Circuit Header, Housing, 24 ~ 22 AWG Crimp Terminals, Insertion Tool |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board |
| 电路数 | 6, 8, 10, 12, 14, 16 | ||
