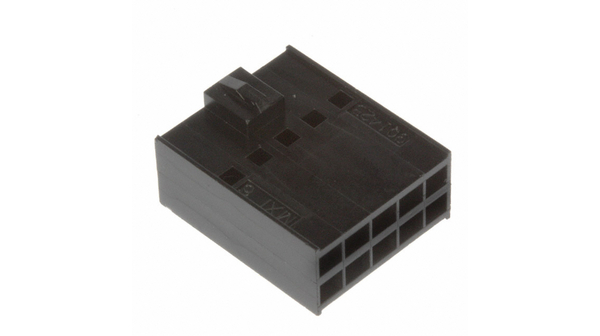

90142-0010
| 制造商 | Molex, LLC |
| 描述 | 10 way dual row housing Headers & Wire Housings CRIMP HSG DUAL 10P Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 2.54MM, 10P WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM 2.54 mm cgrid crimp housing, dual row 10 circuits Crimp housing 2 x 5P, 90142-0010, Molex Molex C-GRID III 系列 2 行 2.54mm 节距 10 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901420010 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90142 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | 3 A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | :Black | 深度 | 15.24mm |
| 间距 | 2.54mm | 宽度 | 7.72mm |
| 长度 | 12.7mm | 重量 | 0.07 |
| 安装类型 | Straight | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 10 |
| 接触件端接 | :Crimp | 位数 | :10 |
产品信息
| 连接器性别 | Female | 系列 | 90142 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | C-Grid III Connector | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
90119-2110
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 22-24 FEM CRIMP TERM Crimp contact terminal,22-24 awg CONTACT, SOCKET, 22-24AWG, CRIMP CONTACT, FEMALE, 24-22AWG, CRIMP c-grid Terminals 22-24 FEM CRIMP TERM Crimp socket 3 A Female 24...22 AWG, 90119-2110, Molex Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
