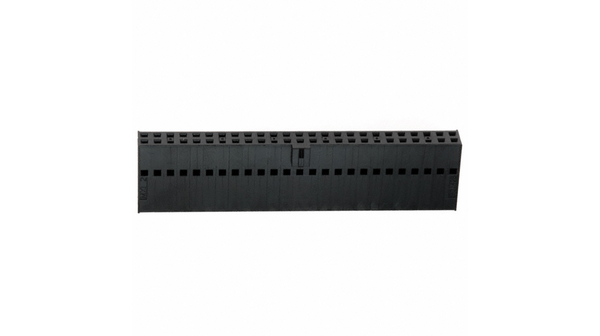

90142-0050
| 制造商 | Molex, LLC |

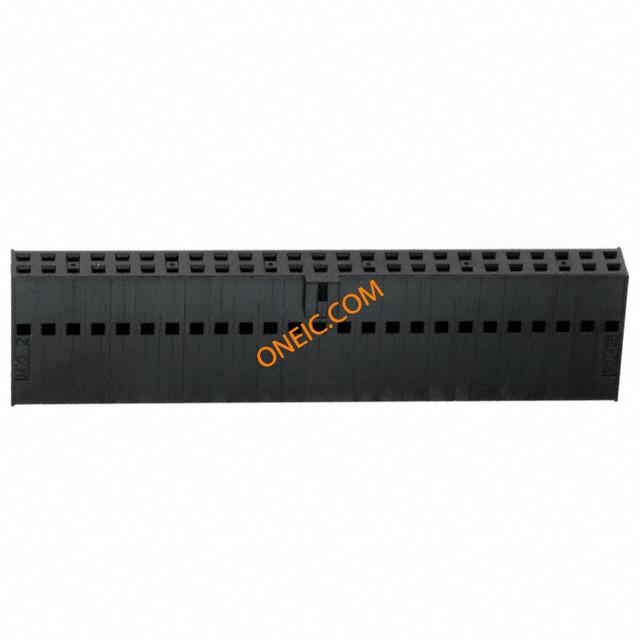

| 描述 | CONN HOUSING 50POS .100" DUAL Crimp Housing 2.54mm C-Grid III,2row,50w Headers & Wire Housings 2.54MM CGRIDIII HSG 50P DR CRIMP Conn Housing F 50 POS 2.54mm Crimp ST Cable Mount Bag HEADER, 50WAY Crimp housing 2 x 25P, 90142-0050, Molex Molex C-GRID III 系列 2 行 2.54mm 节距 50 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901420050 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90142 Series | 额定电压 | 350 V |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 7.72mm |
| 长度 | 63.5mm | 重量 | 0.00001 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 50 |
| 接触件端接 | Crimp | 位数 | 50 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 90142 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | C-Grid III Connector |
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
0901310145
molex

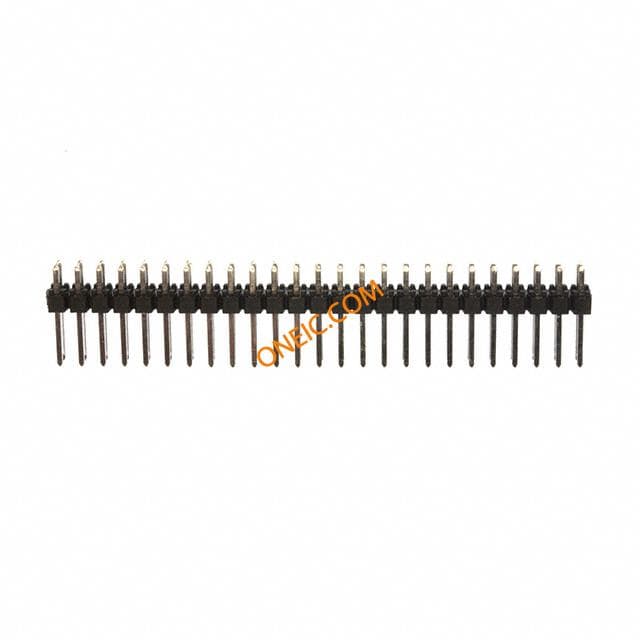

Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 50POS .100" STR TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
90130-3150
Molex

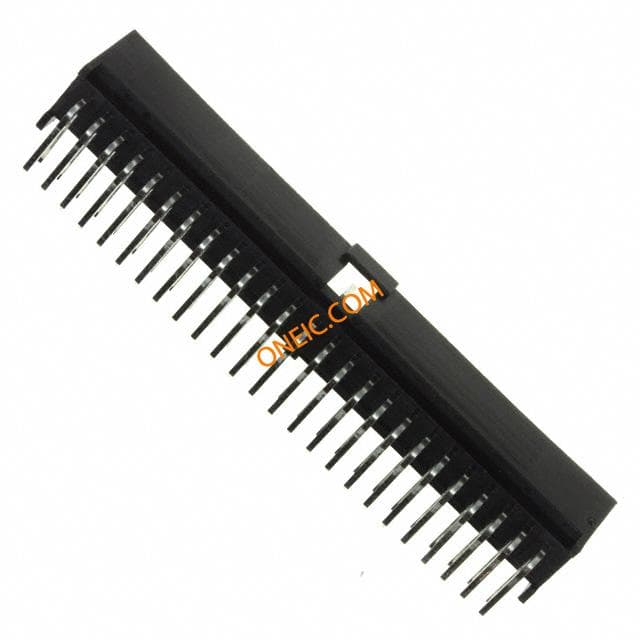

Headers & Wire Housings Obsolete CONN HEADER 50POS .100" R/A TIN
90122-0785
molex

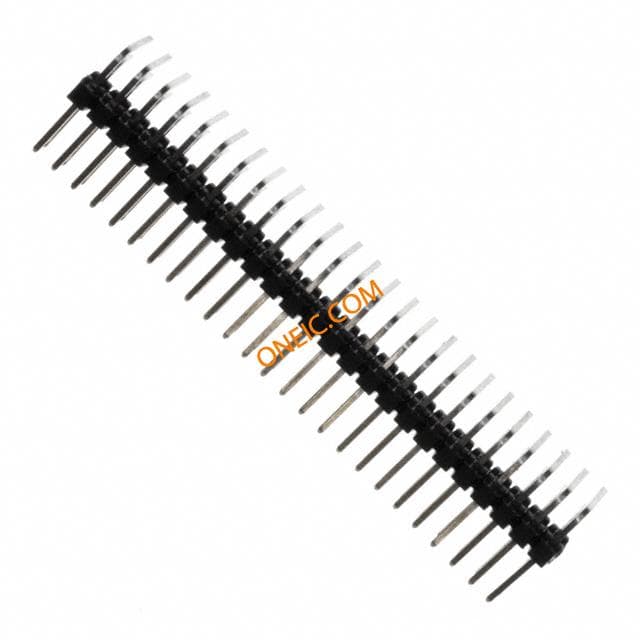

Conn Unshrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 50POS .100" R/A GOLD Headers & Wire Housings C-GRID III 50 CKT HE
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
90122-0145
Molex Connector Corporation

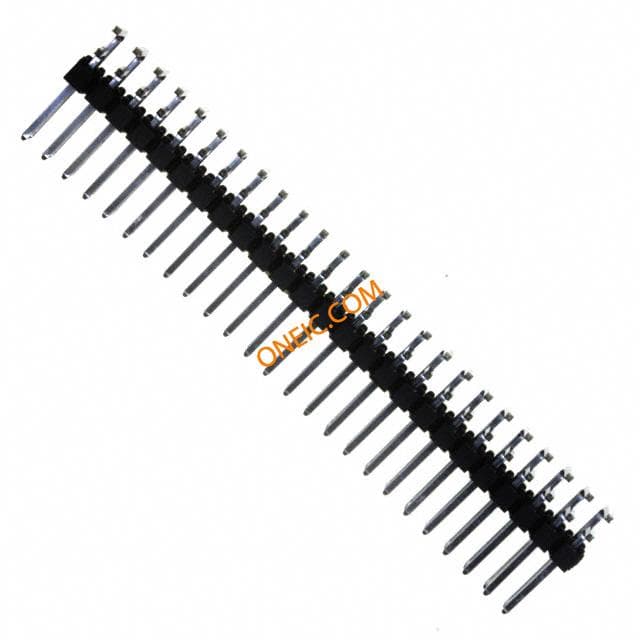

CONN HEADER 50POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 50P R/A DR TIN Conn Unshrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Bag
90131-0785
Molex Connector Corporation

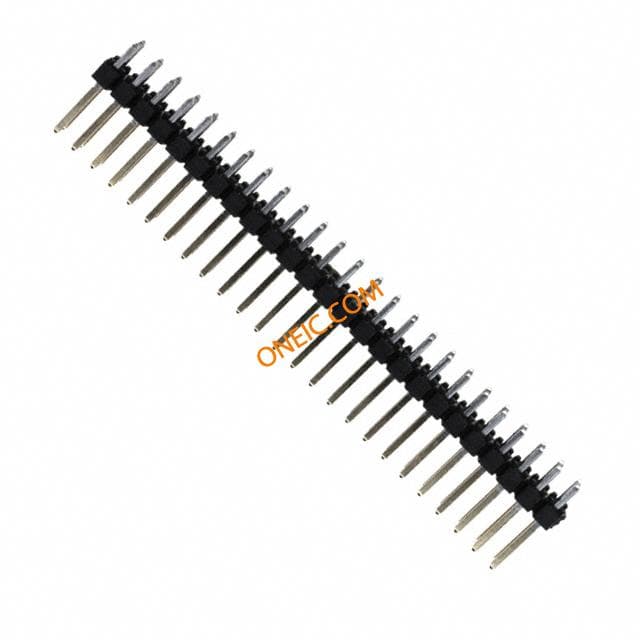

CONN HEADER 50POS .100" STR GOLD Molex 90131 Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 50P VERT DR SEL AU Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 50路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔
90130-1250
Molex Connector Corporation

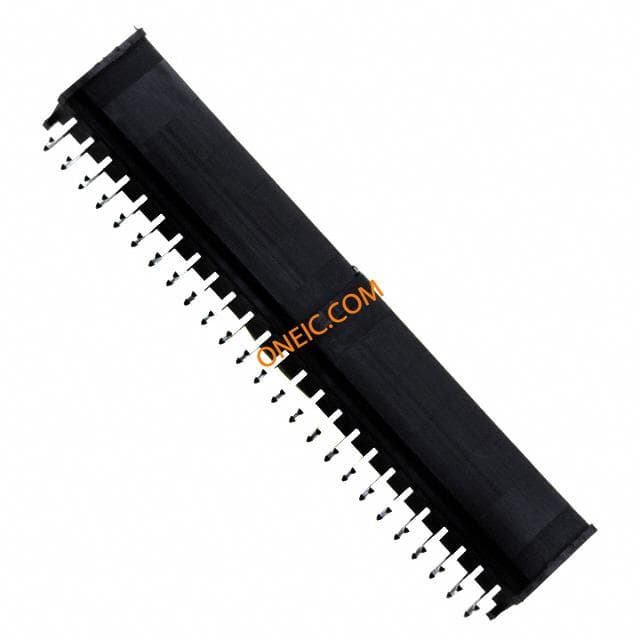

CONN HEADER 50POS .100" STR GOLD Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tray
90130-1150
Molex Connector Corporation

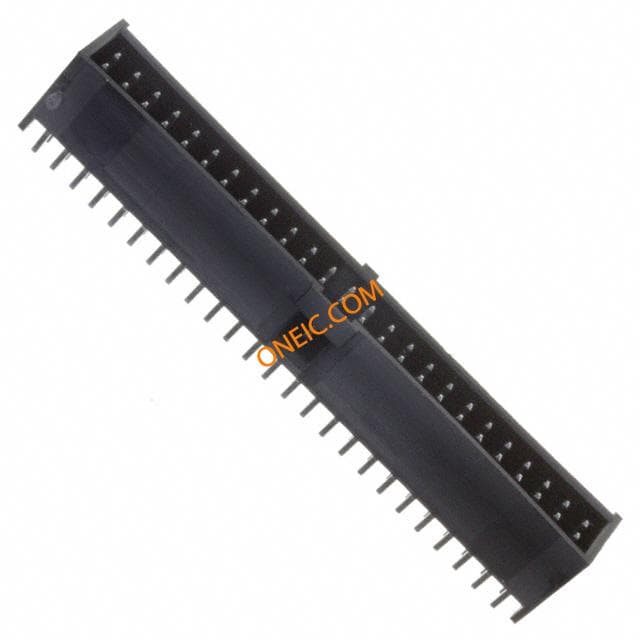

CONN HEADER 50POS .100" STR TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 50P V DR SHRD TIN Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tray
