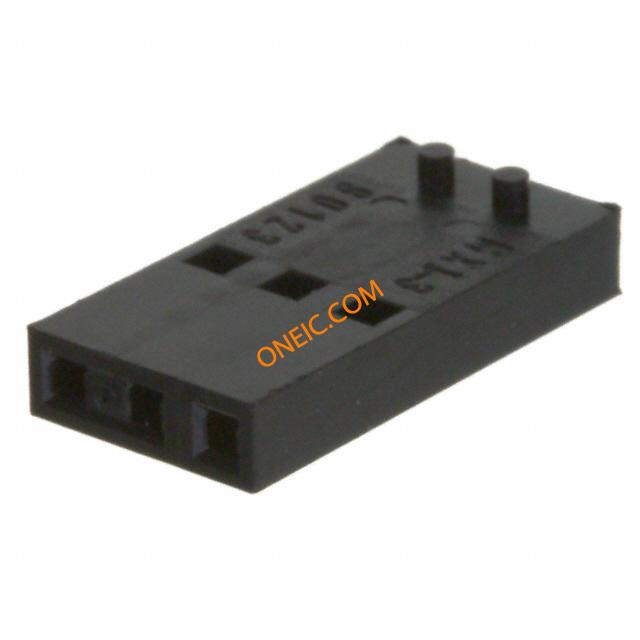

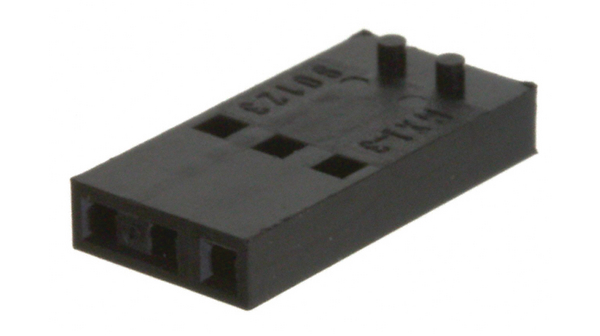

90123-0103
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 3 POS 2.54mm Crimp ST Bag CONN HOUSING 3POS .100" SINGLE 3 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 3P SR W/2POL BTTN HOUSING POLARISED, 3WAY Crimp housing 1 x 3P, 90123-0103, Molex Molex C-GRID III 系列 2.54mm 节距 3 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901230103 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :MOLEX - C-Grid III 90123 Series | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 3.43mm |
| 长度 | 7.62mm | 重量 | 0.016 |
| 包装方式 | Bulk | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :Polyphenylene Oxide UL94V-1 | 触头材料 | :- |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 第一连接器安装类型 | :PC Board | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 90123 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | C-Grid III Modular Connector |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
