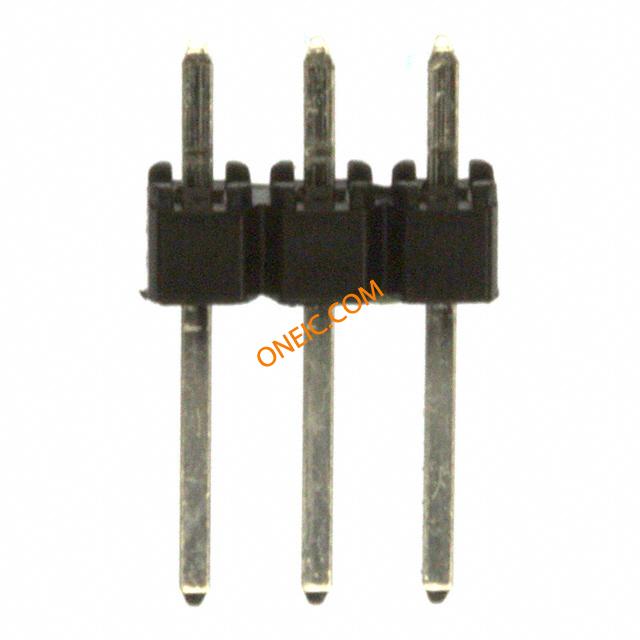

点击放大查看
0901200123
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 3POS .100" STR TIN Pin header; pin strips; C-Grid III; male; PIN:3; straight; 2.54mm |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 350V | 最小供电电压 | 350V |
机械参数
| 颜色 | Black | 深度 | 2.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 9.25 mm |
| 重量 | 0.18 g | 包装方式 | Tray |
| 方向 | straight | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54mm |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 7.62 mm | 包装数量 | 9000 |
| 连接器 - 电缆 | pin header | 触点数 | 3 |
| 位数 | 3 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 118.1µin (3.00µm) | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| SPG | 9000 | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 适配器系列 | C-Grid III |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 125C | ||
