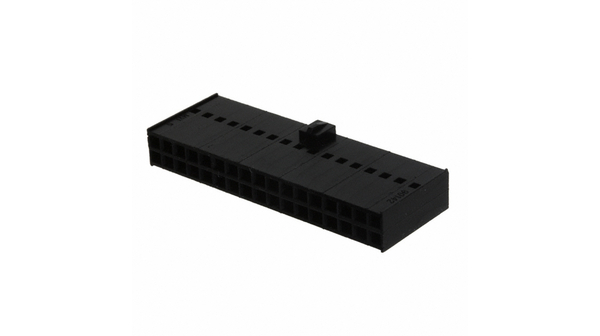

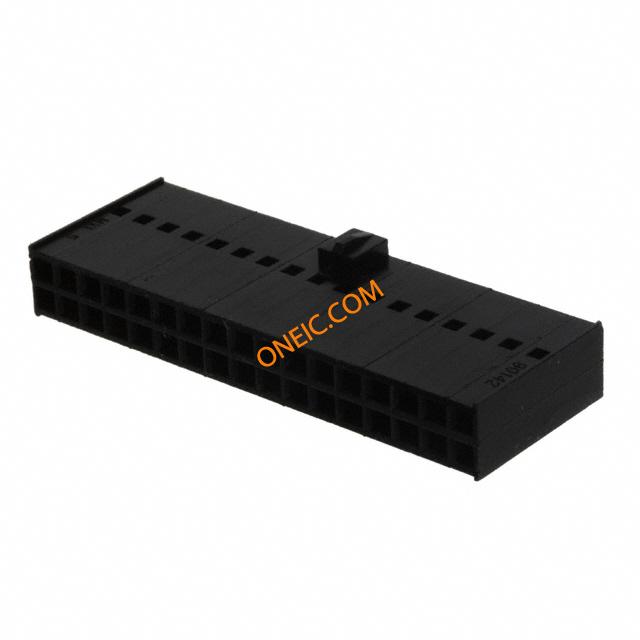

90142-0034
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 34 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 34POS .100" DUAL Crimp Housing 2.54mm C-Grid III,2row,34w Headers & Wire Housings 2.54MM CGRIDIII HSG 34P DR CRIMP 2.54mm Pitch C-Grid III™ Crimp Housing Dual Row, 34 Circuits Crimp housing 2 x 17P, 90142-0034, Molex Molex C-GRID III 系列 2 行 2.54mm 节距 34 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901420034 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 350 V | 极数 | 2 x 17 |
| 最大额定电流 | 3 A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 7.72mm |
| 长度 | 43.18mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.100" (2.54mm) | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | Double row | 壳体材料 | PPO |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 34 | 接触件端接 | Crimp |
| 位数 | 34 | 第一连接器极性 | Female |
产品信息
| 备注 | Contacts Not Provided | 设计类型 | Crimp connector housing, dual row |
| 连接器性别 | Female | 系列 | 90142 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 90142 | 输出配置 | Free Hanging (In-Line) |
| 适用产品/相关产品 | C-Grid III Connector | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
90130-1134
Molex Connector Corporation

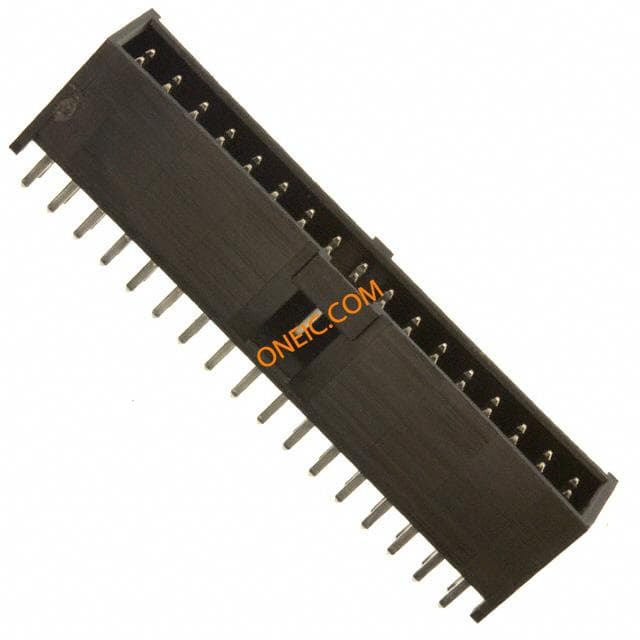

CONN HEADER 34POS .100" STR TIN Molex 90130 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Tray HEADER, 34POS, 2ROW, 2.54MM Molex C-GRID III 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔
90130-3134
Molex Connector Corporation

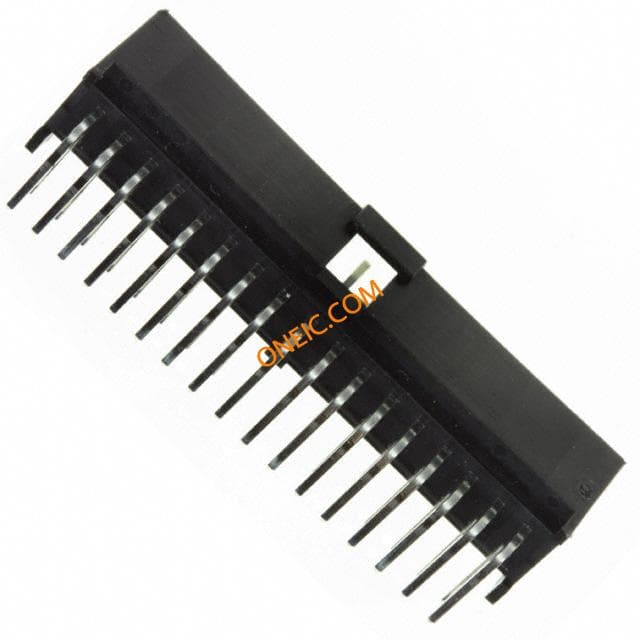

CONN HEADER 34POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 34P R/A DR SHRD TIN Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Tray
