点击放大查看

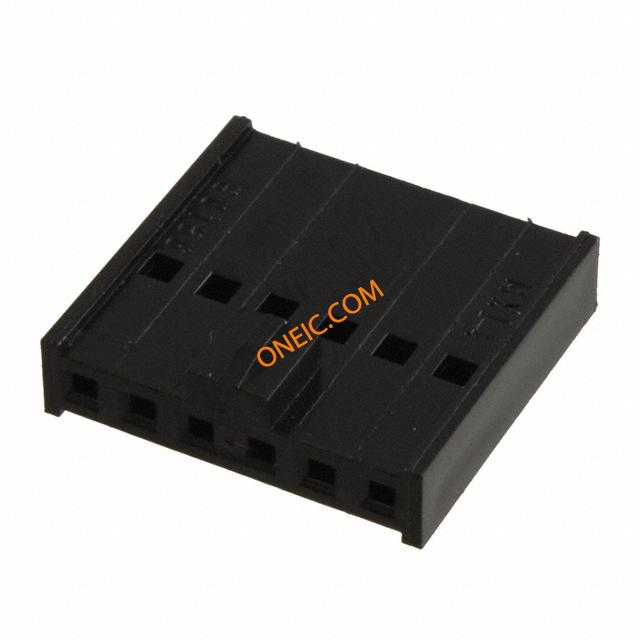

0901560146
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Bag CONN HOUSING 6POS .100" CRIMP |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 5.35 mm |
| 包装方式 | Bag | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 16.3 mm | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0901200766
molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR GOLD
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
0901210126
molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A TIN

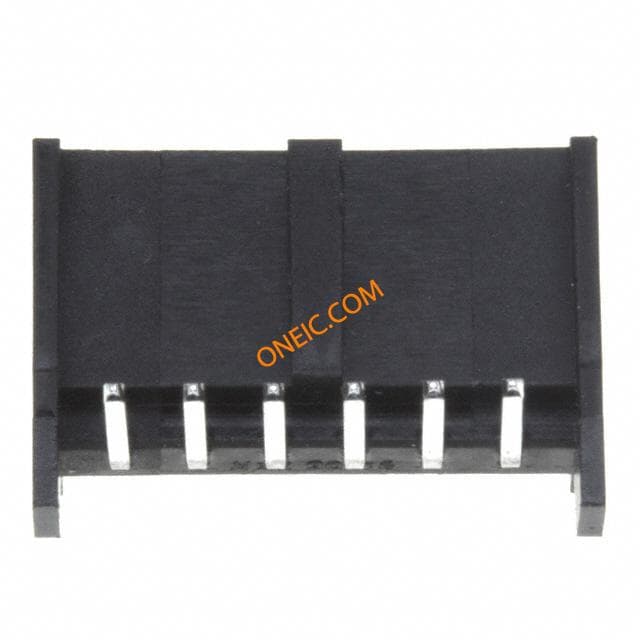

0901362206
molex
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A GOLD
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
76650-0177
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III SINGLE WTB Headers & Wire Housings CGRID3 WTB 1ROW KIT Kit Description:Single Row Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:99 C-GRID III CONNECTOR KIT SINGLE ROW VERT HEADER & RECEPT

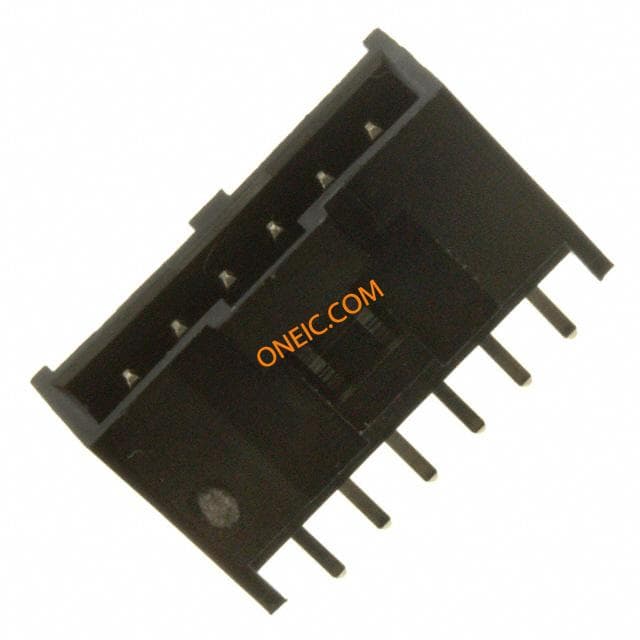

90136-1106
molex
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 6P V SR SHRD TIN
0901200126
Molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR TIN
0901210766
Molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A GOLD Pin header; pin strips; C-Grid III; male; PIN:6; angled 90°; THT

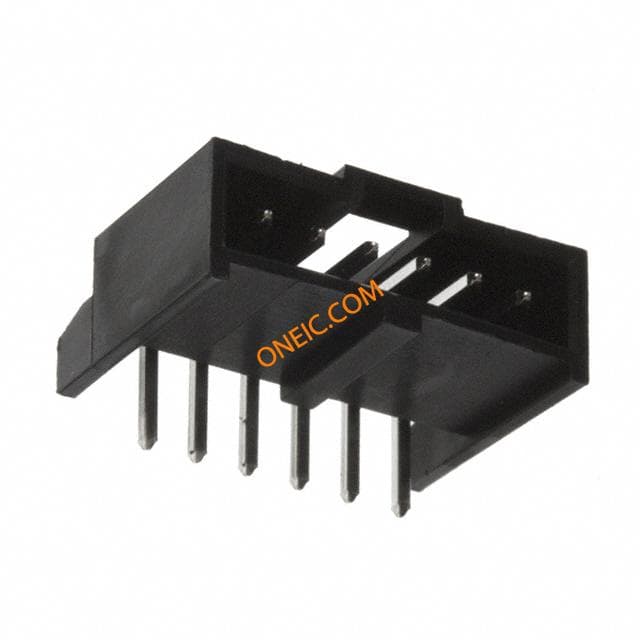

90136-2106
molex
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A TIN Molex 90136 Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 6P R/A SR SHRD TIN Molex C-GRID III 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
90136-2206
Molex Connector Corporation
CONN HEADER 6POS .100" R/A GOLD Molex 90136 Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 6P R/A SR SHRD AU Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔

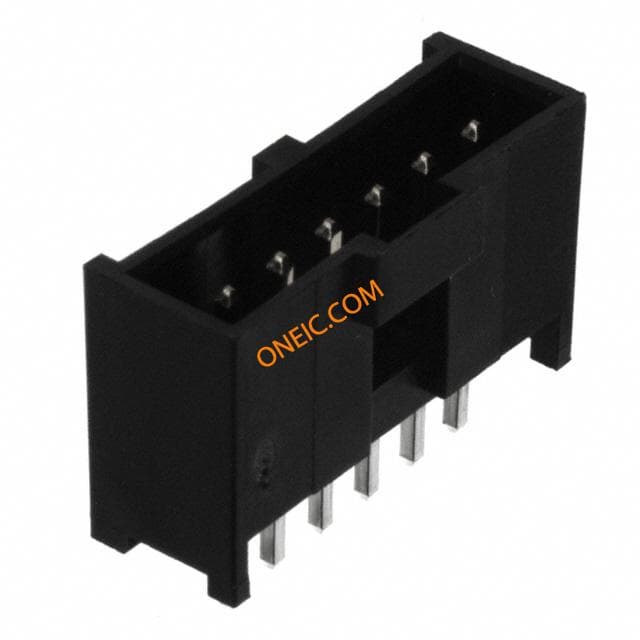

90136-1206
