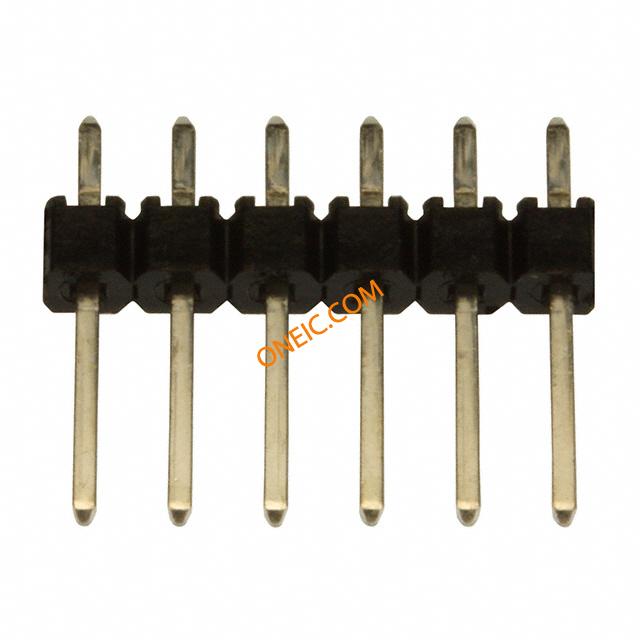

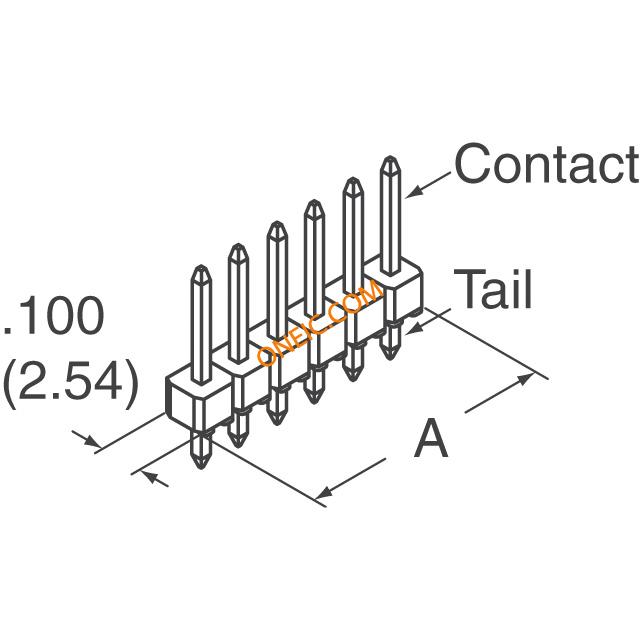

0901200126
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 350V | ||
机械参数
| 颜色 | Black | 深度 | 2.54 |
| 间距 | 0.100" (2.54mm) | 高度 | 9.25 |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 15.24 | 触点数 | 6 |
| 位数 | 6 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 160µin (4.06µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
相关型号

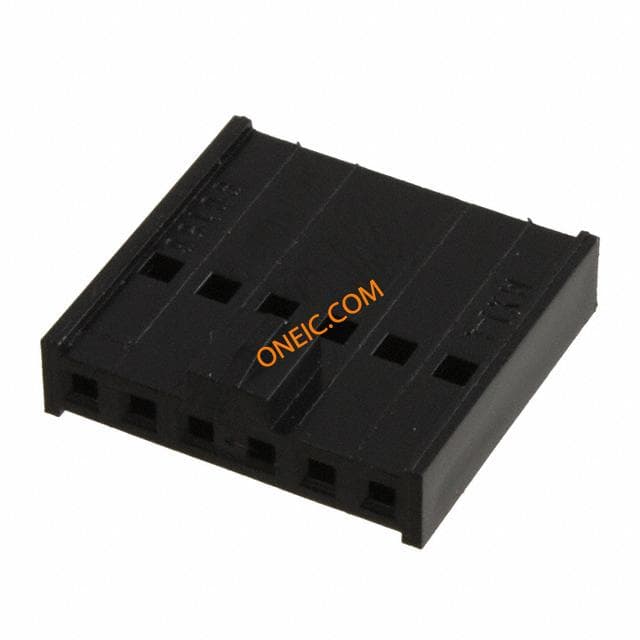

0901560146
molex
Conn Housing RCP 6 POS 2.54mm Crimp ST Bag CONN HOUSING 6POS .100" CRIMP

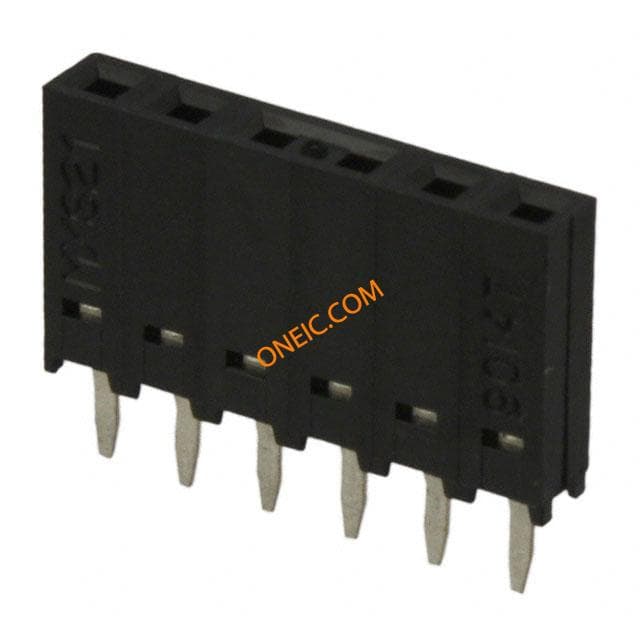

0901471106
molex
6PIN C-GRID CONNECTOR Conn Socket Strip F 6 POS 2.54mm Solder ST Thru-Hole Tube C-GRID PCB CONN SR VT TN-A 6CKT

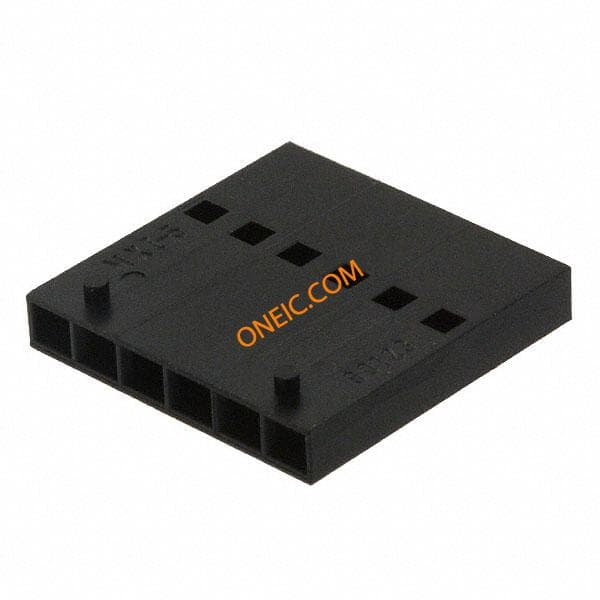

90123-0106
molex
Conn Housing RCP 6 POS 2.54mm Crimp ST Bag CONN HOUSING 6POS .100" SINGLE 6 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 6P SR W/2POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing Single Row, 2 Polarizing Buttons, 6 Circuits HOUSING POLARISED, 6WAY Crimp housing 1 x 6P, 90123-0106, Molex Molex C-GRID III 系列 2.54mm 节距 6 路 直 母 压接连接器外壳
90148-1206
molex
Conn Socket Strip RCP 6 POS 2.54mm Solder RA Thru-Hole Tube CONN RECEPT HORIZ 6POS .100 PCB 2.54mm Pitch C-Grid® PC Board Connector, Single Row, Right Angle, 0.38µm Gold (Au) Selective, 6 Circuits

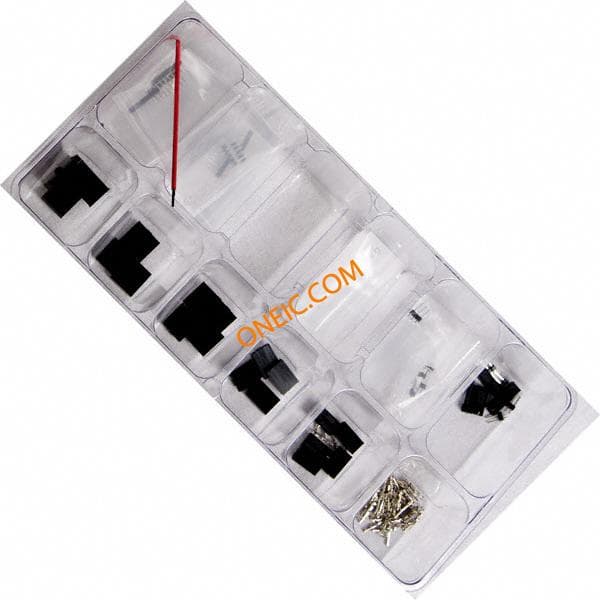

76650-0177
