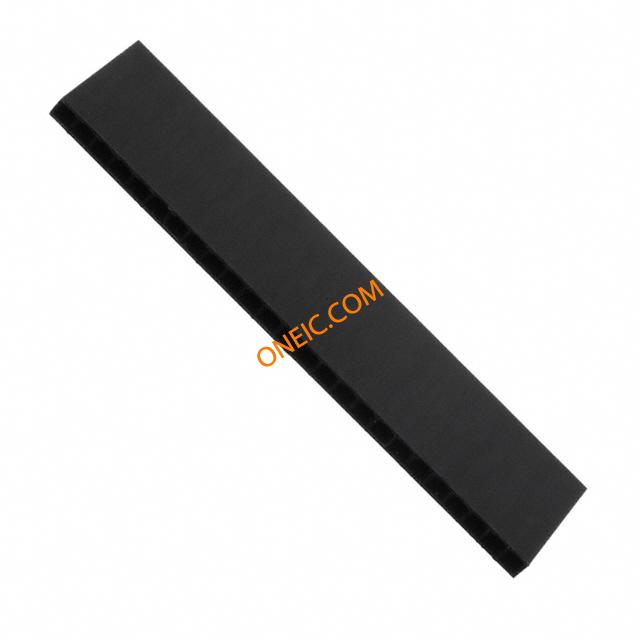

90123-0125
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 25 POS 2.54mm Crimp ST Bag CONN HOUSING 25POS .100" SINGLE Headers & Wire Housings 2.54MM CGRIDIII HSG 25P SR W/2POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing Single Row, 2 Polarizing Buttons, 25 Circuits |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901230125 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | Polyphenylene Oxide (PPO) | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 25 |
| 接触件端接 | Crimp | 位数 | 25 |
产品信息
| 备注 | Contacts Not Provided | 系列 | 90123 |
| 产品特性 | Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
