点击放大查看

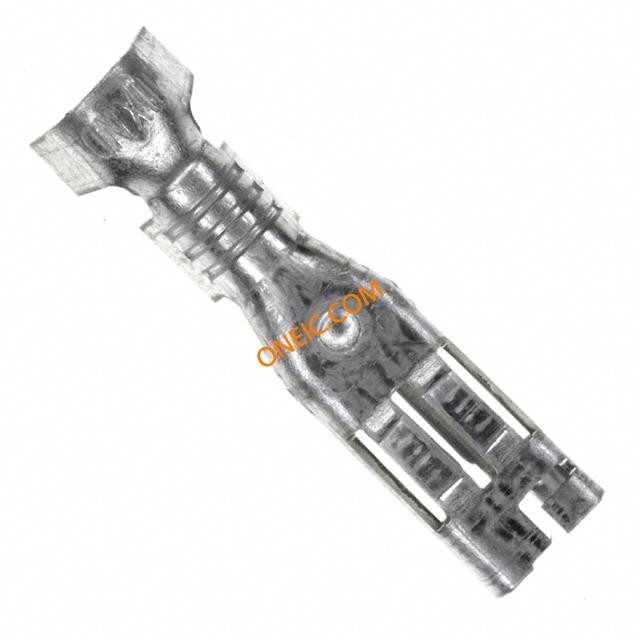

0433750001
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 14-16AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel TERM BLADE FEMALE 14-16AWG TIN |
| 分类 |
商业参数
| 交货时间 | 29 Days | 子类别 | Connector Contact |
| 标准包装数量 | 4,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 18 A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 深度 | 4.19 mm | 间距 | Not Required mm |
| 高度 | 3.35 mm | 包装方式 | Reel |
| 导线线规 | 14-16 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 18.06 mm |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Stamped | 连接器性别 | SKT |
| 行业别名 | 43375-0001, 433750001 | ||
环境参数
| 工作温度 | -40C to 75C | ||
