0444411004
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 4 POS 7.49mm Crimp ST Cable Mount Bag CONN RCPT SR V-2 4POS |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 18A | ||
机械参数
| 颜色 | Natural | 深度 | 15.24 |
| 间距 | 0.295" (7.50mm) | 高度 | 27.38 |
| 包装方式 | Bag | 触头类型 | Female Blade Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 30.8 | 触点数 | 4 |
| 堆叠方向 | Side to Side | 接触件端接 | Crimp |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
环境参数
| 工作温度 | -40°C ~ 75°C | ||
相关型号
0431602104
molex
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Tray CONN HEADER 4POS TIN SOLDER Connector: wire-board; SABRE; socket; male; PIN:4; tinned; 18A; 600V
0431605304
molex
Conn Wire to Board HDR 4 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 4 POS 7.49mm Solder RA Thru-Hole 8 Terminal 1 Port Tray CONN HEADER R/A 4POS TIN SOLDER
0431604104
molex
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole CONN HEADER 4POS TIN SOLDER
0431600304
molex
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Tray CONN HEADER 4POS TIN SOLDER
0431604304
molex
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Tray CONN HEADER 4POS TIN SOLDER
0433753001
molex
Contact F Crimp ST Cable Mount Reel Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

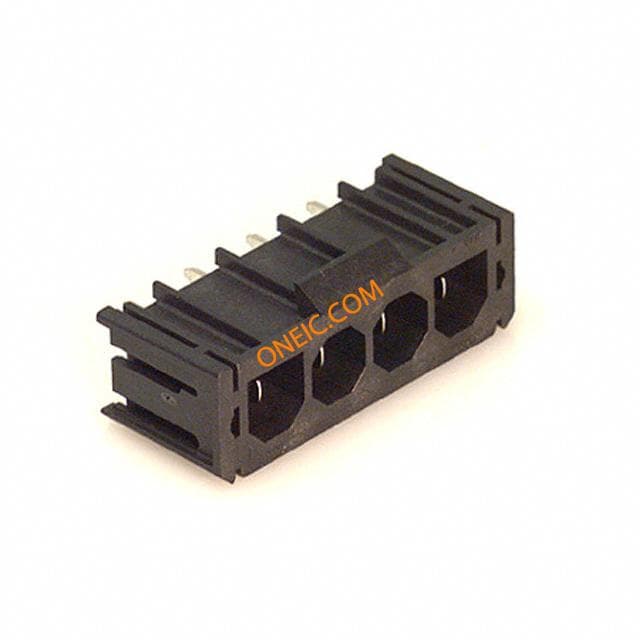

43160-0104
molex
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray CONN HEADER 4POS TIN SOLDER Headers & Wire Housings VERT HDR SMC 4P without board lock Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Tray

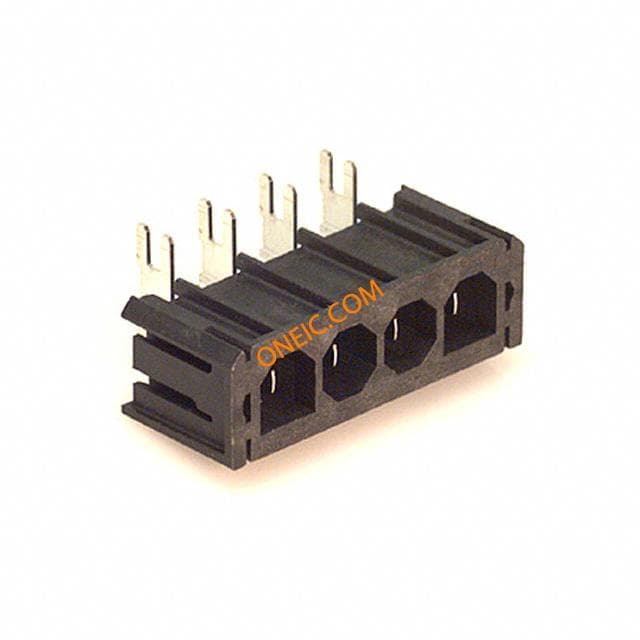

43160-1104
