点击放大查看
0433751001
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 14-16AWG TIN TERM BLADE FEMALE 14-16AWG TIN Contact; female; 14÷18AWG; SABRE; tinned; crimped, on cable; 18A |
| 分类 |
商业参数
| 标准包装数量 | 3,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 18 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 4.19 mm | 间距 | Not Required mm |
| 重量 | 0.67 g | 包装方式 | Tape and Reel |
| 导线线规 | 14-16 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 柱间距 | 7.5mm | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 18.06 mm | 包装数量 | 3000 |
| 连接器 - 电缆 | contact | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 20µin (0.51µm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 3000 | 类型 | Stamped |
| 连接器性别 | SKT | 已删除 | Compliant |
| 适配器系列 | SABRE | 单元数量 | 1 |
环境参数
| 工作温度 | -40C to 75C | ||
相关型号
0433011003
Molex, LLC
. 0433011003 - 3 Position Blade Type Power Housing Connector Receptacle Natural 0.220" (5.59mm) from Molex. from now!

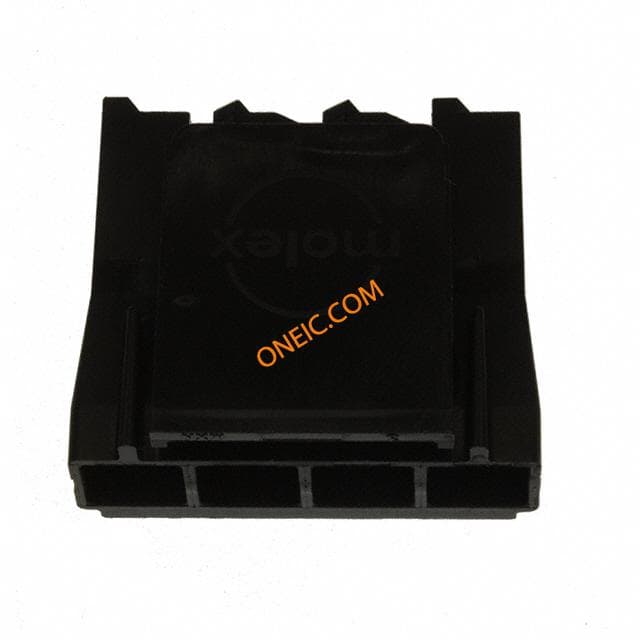

0444412004
molex
Conn Housing RCP 4 POS 7.49mm Crimp ST Bag CONN HOUSING 4POS 7.50MM BLACK CONN HSG RCPT 4POS 7.50MM BLACK Connector: wire-board; SABRE; plug; female; PIN:4; w/o terminals
0638117300
molex
Hand Crimp Tool TOOL CRIMP 14-18 (2)18AWG FEMALE
0638405200
molex
Connector Accessories Crimp Terminator Die Set Terminator Die With Crimp Function TERMINATOR ASSEMBLY
0638916100
molex
Connector Accessories Mini Mac Applicator Tool MINI MAC APPLICATOR
63813-0500
Molex
Hand Tools EXTRACTION TOOL 14-18 AWG TOOL HAND EXTRACTION FEMALE Manual Extraction Tool
0437962024
Molex
24 CIRCUIT RECEPTACLE HOUSING
0433351103
Molex, LLC
Order Molex 0433351103 (0433351103-ND) at . , view product specifications, and order online.
0444411002
Molex
Conn Housing RCP 2 POS 7.49mm Crimp ST Bag CONN RCPT SR V-2 2POS

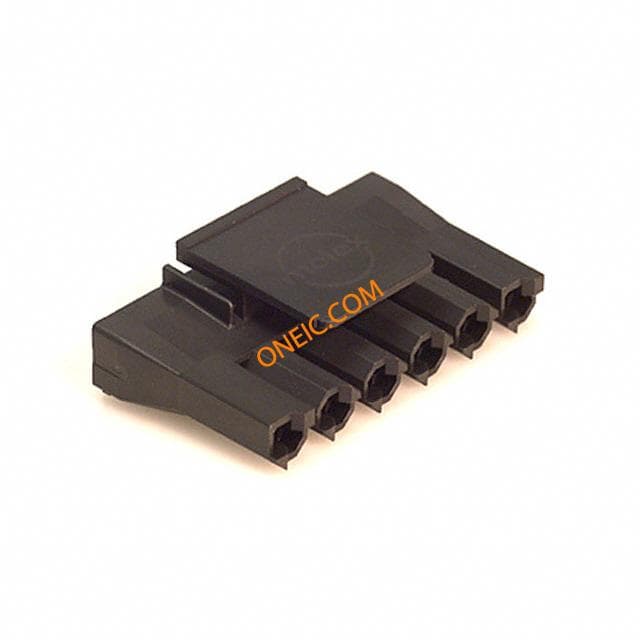

0444412006
Molex
Conn Housing RCP 6 POS 7.49mm Crimp ST Bag CONN HOUSING 6POS 7.50MM BLACK CONN HSG RCPT 6POS 7.50MM BLACK Connector: wire-board; SABRE; plug; female; PIN:6; w/o terminals
0432752024
Molex, LLC
Order Molex 0432752024 (0432752024-ND) at . , view product specifications, and order online.
0433355023
Molex, LLC
Order Molex 0433355023 (0433355023-ND) at . , view product specifications, and order online.
0444411003
Molex
CONN HOUSING RCP 3 POS 7.49MM CRIMP ST BAG CONN RCPT SR V-2 3POS
0433351003
Molex
Conn Housing RCP 3 POS 7.49mm Crimp ST Bag CONN HOUSING 3POS 7.50MM NATURAL
0433352002
Molex, LLC
. 0433352002 - 2 Position Blade Type Power Housing Connector Receptacle Black 0.295" (7.50mm) from Molex. from now!
0638917000
Molex
Connector Accessories Mini Mac Applicator Tool MINI MAC APPLICATOR
0444411004
Molex
Conn Housing F 4 POS 7.49mm Crimp ST Cable Mount Bag CONN RCPT SR V-2 4POS
0433352103
Molex
Conn Housing RCP 3 POS 7.5mm Crimp ST Bag CONN HOUSING 3POS 7.50MM BLACK

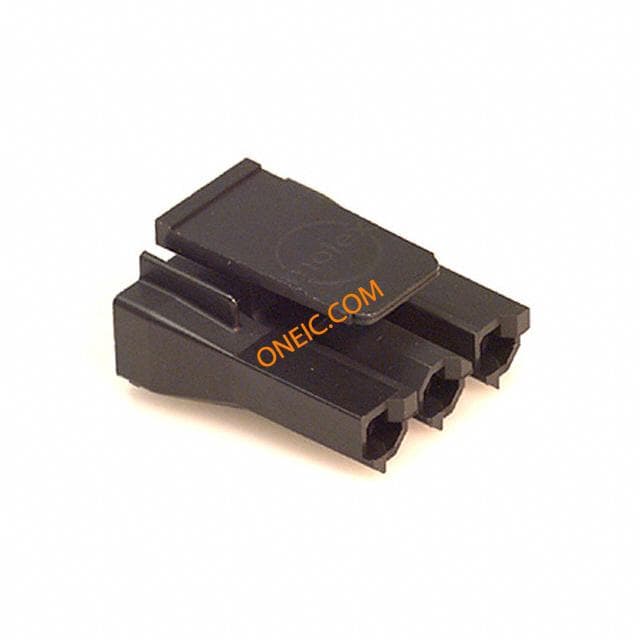

0444412003
