点击放大查看

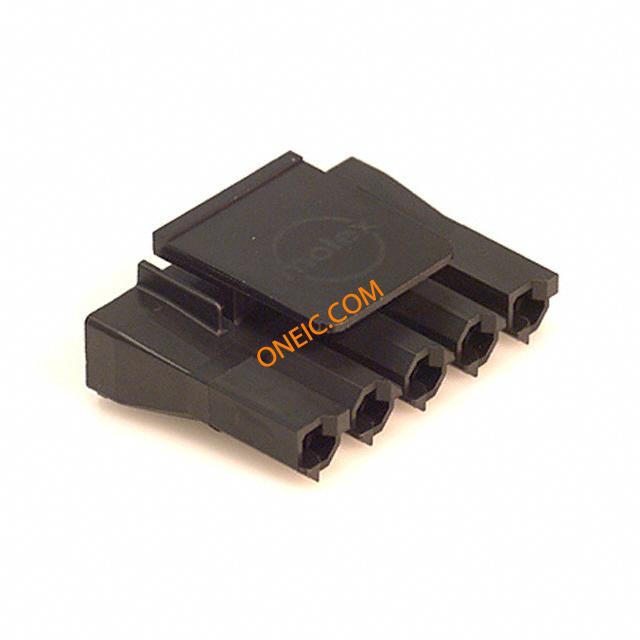

44441-2005
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 5POS 7.5MM SINGLE CONN HOUSING 5POS 7.50MM BLACK 5 way single row cable socket,14-18 awg Headers & Wire Housings RECPT SINGLE ROW 5P Conn Housing RCP 5 POS 7.49mm Crimp ST Bag RECEPTACLE, 5WAY Molex SABRE 系列 1 行 7.49mm 节距 5 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Sabre | 零件号别名 | 0444412005 44441-2005-PB |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 750 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 介电强度 | :6000V/m | 最大额定电流 | 18A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 27.38mm |
| 间距 | 0.295" (7.50mm) | 宽度 | 15.24mm |
| 长度 | 38.3mm | 重量 | 0.004 |
| 包装方式 | Bulk | 导线线规 | 18-14 |
| 触头类型 | Female Blade Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :Nylon UL94V-0 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 位数 | 5 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | :14AWG |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 44441 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | Sabre Receptacle |
环境参数
| 工作温度 | -40°C ~ 75°C | ||
