点击放大查看

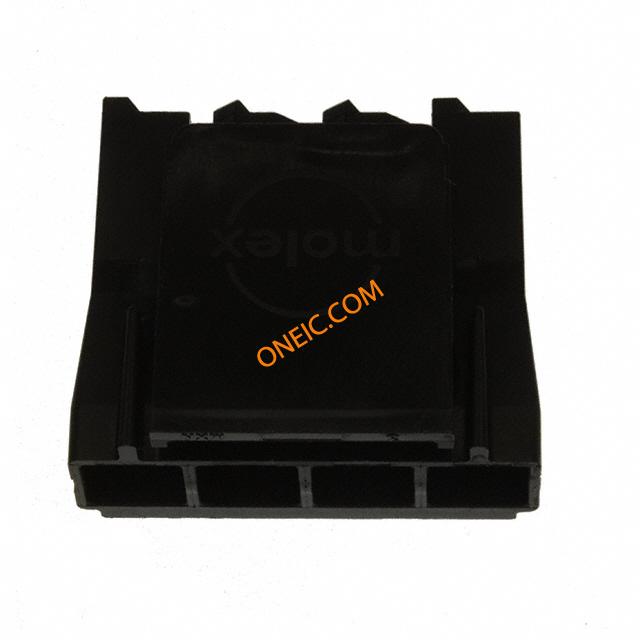

0444412004

制造商	Molex, LLC
描述	Conn Housing RCP 4 POS 7.49mm Crimp ST Bag CONN HOUSING 4POS 7.50MM BLACK CONN HSG RCPT 4POS 7.50MM BLACK Connector: wire-board; SABRE; plug; female; PIN:4; w/o terminals
分类	连接器解决方案压接与焊接端子/接头压接插座

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94V-0

电气参数

额定电压值	600V	最大额定电流	18A
最小输入电压	600V	最小供电电压	600V
连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Black	深度	27.38 mm
间距	7.49 mm	高度	15.24 mm
重量	4.48 g	包装方式	Bag
触头类型	Female Blade Socket	柱间距	7.5mm
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	紧固类型	Latch Lock
安装样式	for cable	排数	1
锁定特性	lock	壳体材料	Nylon
总长度	30.81 mm	包装数量	250
连接器 - 电缆	plug	触点数	4
堆叠方向	Side to Side	接触件端接	Crimp
位数	4	绝缘材料 - 材质	Polyamide (PA), Nylon
外壳与棱镜材料	polyamide

产品信息

SPG	250	备注	Contacts Not Provided
类型	Housing	连接器性别	RCP
适配器系列	SABRE	单元数量	1

环境参数

工作温度

-40°C ~ 75°C

文档与媒体

PDF 文档

44441 Series Latch Jul/2011

PDF 文档

76450,170026 Series 06/Feb/2014

PDF 文档

GCN 10626777 13/Feb/2014

PDF 文档

0444412004_CRIMP_HOUSINGS.pdf

PDF 文档

44441-2004

相关型号

0431602104

molex

Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Tray CONN HEADER 4POS TIN SOLDER Connector: wire-board; SABRE; socket; male; PIN:4; tinned; 18A; 600V

¥13.2870

详情

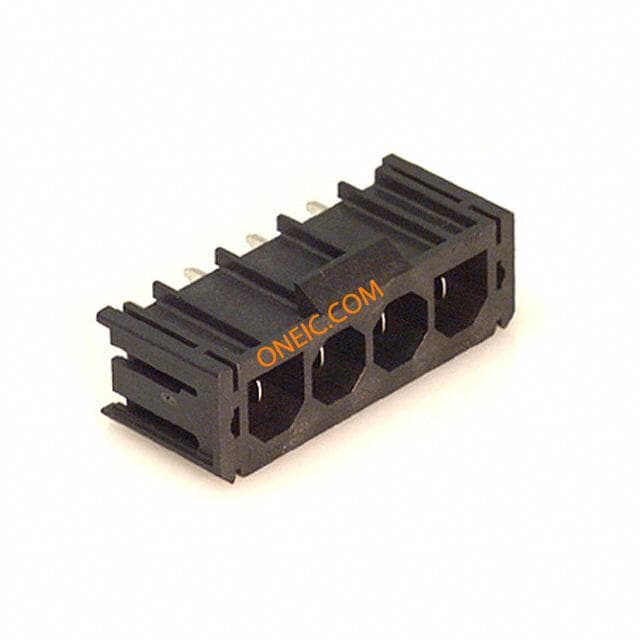

43160-0104

molex

Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray CONN HEADER 4POS TIN SOLDER Headers & Wire Housings VERT HDR SMC 4P without board lock Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Tray

¥4.4200

详情

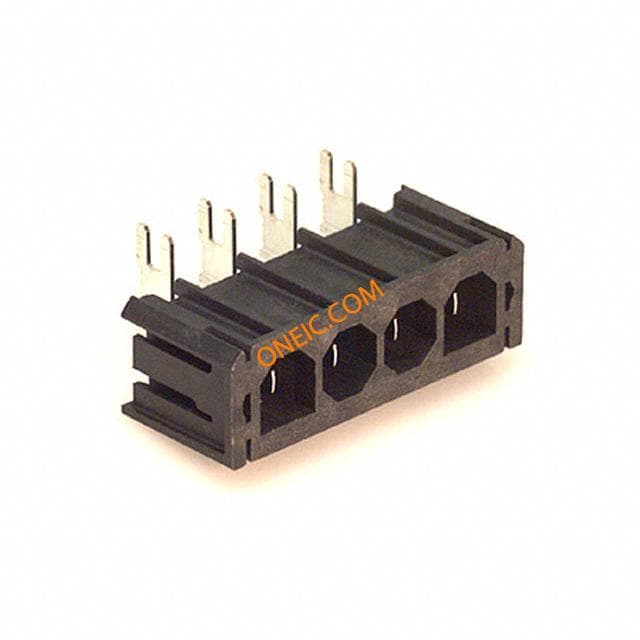

43160-1104
