点击放大查看

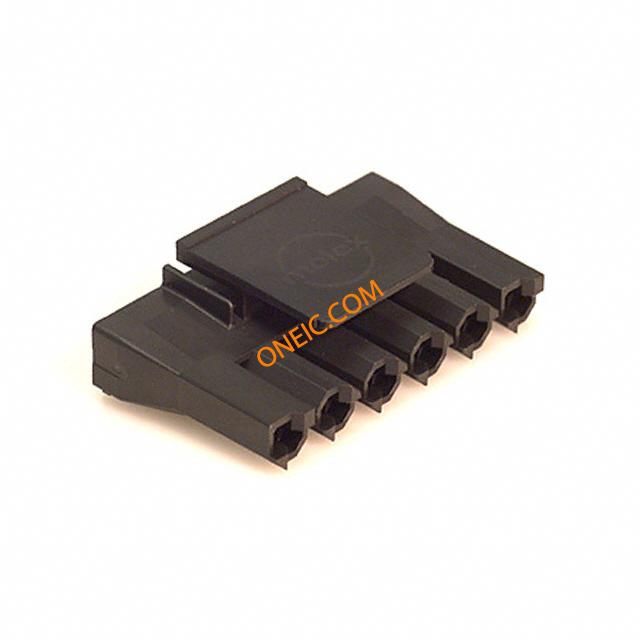

0444412006

制造商	Molex, LLC
描述	Conn Housing RCP 6 POS 7.49mm Crimp ST Bag CONN HOUSING 6POS 7.50MM BLACK CONN HSG RCPT 6POS 7.50MM BLACK Connector: wire-board; SABRE; plug; female; PIN:6; w/o terminals
分类	连接器解决方案压接与焊接端子/接头压接插座

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94V-0

电气参数

额定电压值	600V	最大额定电流	18A
最小输入电压	600V	最小供电电压	600V
连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Black	深度	27.38 mm
间距	0.295" (7.50mm)	高度	15.24 mm
重量	5.99 g	包装方式	Bag
触头类型	Female Blade Socket	柱间距	7.5mm
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	紧固类型	Latch Lock
安装样式	for cable	排数	1
锁定特性	lock	壳体材料	Nylon
总长度	45.8 mm	包装数量	600
连接器 - 电缆	plug	触点数	6
堆叠方向	Side to Side	接触件端接	Crimp
位数	6	绝缘材料 - 材质	Polyamide (PA), Nylon
外壳与棱镜材料	polyamide

产品信息

SPG	600	备注	Contacts Not Provided
类型	Housing	连接器性别	RCP
适配器系列	SABRE	单元数量	1

环境参数

工作温度

-40°C ~ 75°C

文档与媒体

PDF 文档

44441 Series Latch Jul/2011

PDF 文档

76450,170026 Series 06/Feb/2014

PDF 文档

GCN 10626777 13/Feb/2014

PDF 文档

44441-2006

相关型号

76650-0160

molex

Free Hanging Plug And Receptacle Kit KIT CONN SABRE 7.5MM WTW I/O Connectors SABRE 7.5MM KIT Kit Description:Free Hanging Plug and ReceptacleKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:246 SABRE PWR CONNECTOR KIT FREE HANGING PLUG & RECEPT

¥215.3084

详情

0433751001

Molex

Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 14-16AWG TIN TERM BLADE FEMALE 14-16AWG TIN Contact; female; 14÷18AWG; SABRE; tinned; crimped, on cable; 18A

¥0.5039

详情

0431602106

Molex

Conn Power HDR 6 POS 7.49mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 6POS TIN SOLDER CONN HDR 6POS 7.50MM PCB SLDR Connector: wire-board; SABRE; socket; male; PIN:6; tinned; 18A; 600V

¥9.1644

详情

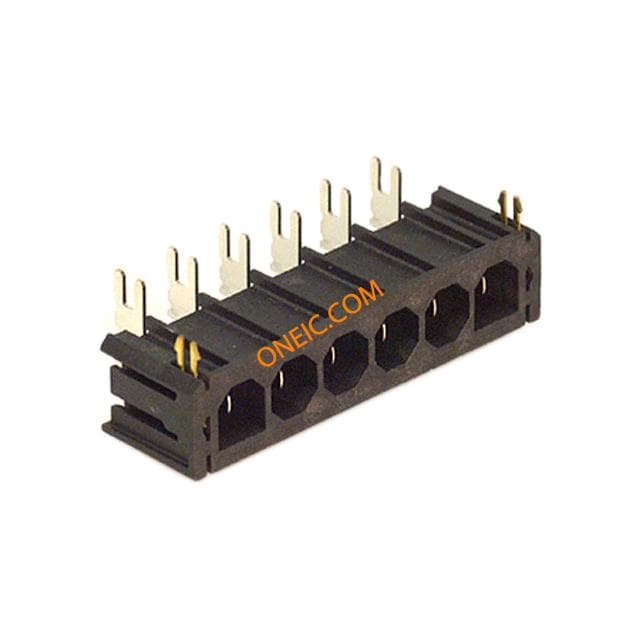

43160-3106

molex

Conn Wire to Board HDR 6 POS 7.49mm Solder RA Thru-Hole Tray CONN HEADER R/A 6POS TIN SOLDER Molex 43160 Series 7.49mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 18A Headers & Wire Housings R.A. HDR SMC 6P with board lock Conn Power HDR 6 POS 7.49mm Solder RA Thru-Hole 12 Terminal 1 Port Tray HEADER, RIGHT ANGLE, SMC, 6WAY Molex SABRE 系列 7.49mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 18A , 通孔

¥6.8680

详情

0433750001

Molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 14-16AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel TERM BLADE FEMALE 14-16AWG TIN

¥0.4842

详情

0433740001

Molex, LLC

. 0433740001 - Blade Contact 14-16 AWG Crimp Female Blade Socket Tin from Molex. from now!

¥0.2237

详情

43680-2006

Molex Connector Corporation

CONN PLUG 6POS 7.5MM CONN HOUSING 6POS 7.50MM BLACK 6 way single row cable plug,14-18 awg Headers & Wire Housings PLUG SINGLE ROW 6P Conn Housing PL 6 POS 7.49mm Crimp ST Bag Molex SABRE 系列 7.49mm 节距 6 路直公压接连接器外壳

¥2.6656

详情

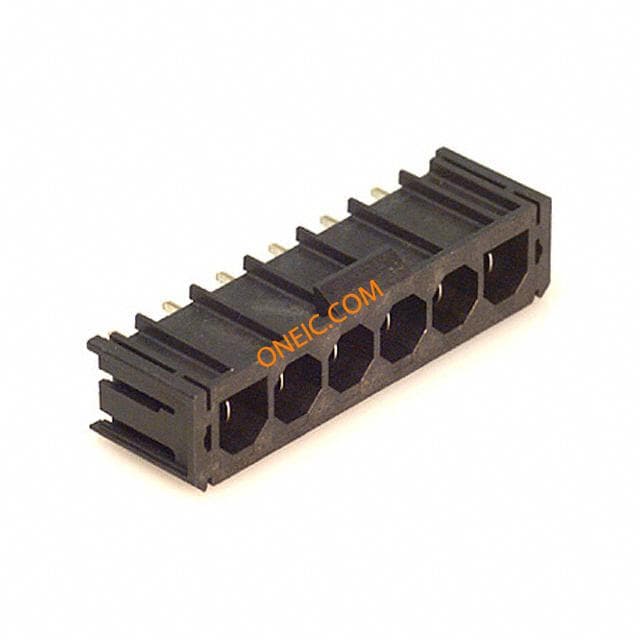

43160-0106

Molex Connector Corporation

CONN HEADER 6POS TIN SOLDER Conn Power HDR 6 POS 7.49mm Solder ST Thru-Hole 12 Terminal 1 Port Tray

¥6.1880

详情

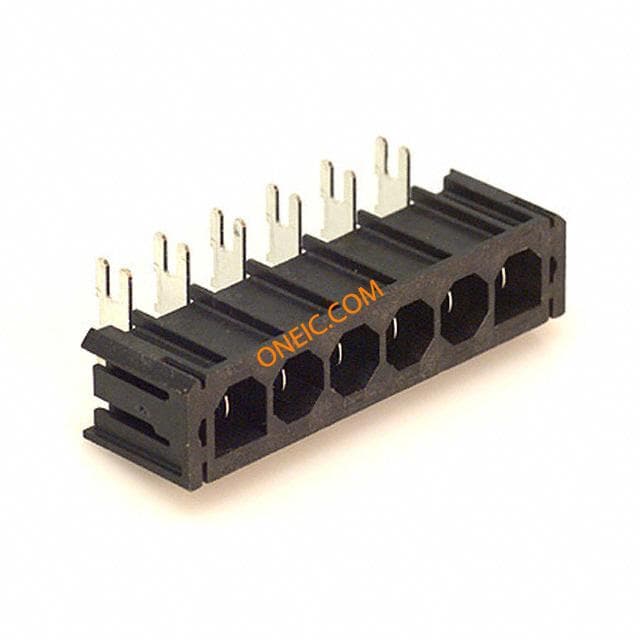

43160-1106

Molex Connector Corporation

CONN HEADER R/A 6POS TIN SOLDER Headers & Wire Housings R.A. HDR SMC 6P without board lock Conn Power HDR 6 POS 7.49mm Solder RA Thru-Hole 12 Terminal 1 Port Tray

¥7.4800

详情
