点击放大查看

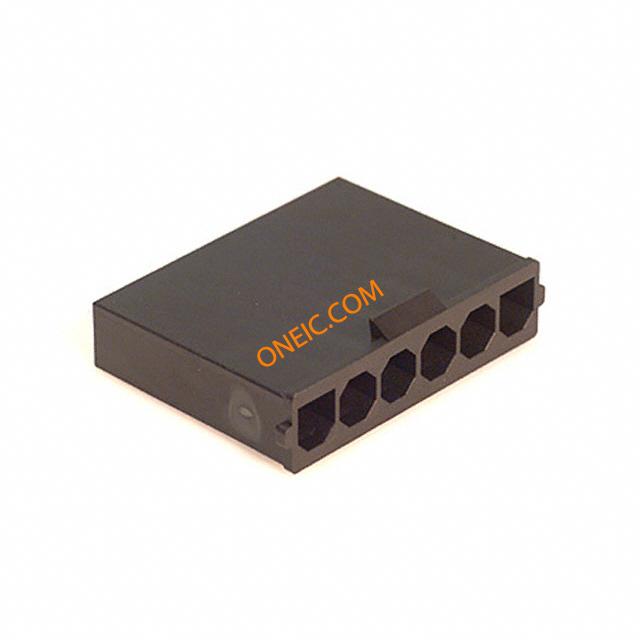

43680-2006
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 6POS 7.5MM CONN HOUSING 6POS 7.50MM BLACK 6 way single row cable plug,14-18 awg Headers & Wire Housings PLUG SINGLE ROW 6P Conn Housing PL 6 POS 7.49mm Crimp ST Bag Molex SABRE 系列 7.49mm 节距 6 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Sabre | 零件号别名 | 0436802006 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 18A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Black | 深度 | 35.56mm |
| 间距 | 0.295" (7.50mm) | 宽度 | 19.15mm |
| 长度 | 48.9mm | 包装方式 | Bulk |
| 导线线规 | 18-14 | 方向 | 直 |
| 触头类型 | Male Blade | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon |
| 触点数 | 6 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 位数 | 6 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 43680 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 43680 | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | Sabre Plug | ||
环境参数
| 工作温度 | -40°C ~ 75°C | ||
文档与媒体
相关型号
76650-0160
molex
Free Hanging Plug And Receptacle Kit KIT CONN SABRE 7.5MM WTW I/O Connectors SABRE 7.5MM KIT Kit Description:Free Hanging Plug and ReceptacleKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:246 SABRE PWR CONNECTOR KIT FREE HANGING PLUG & RECEPT
0431782002
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-16AWG TIN TERM BLADE MALE 14-16AWG TIN

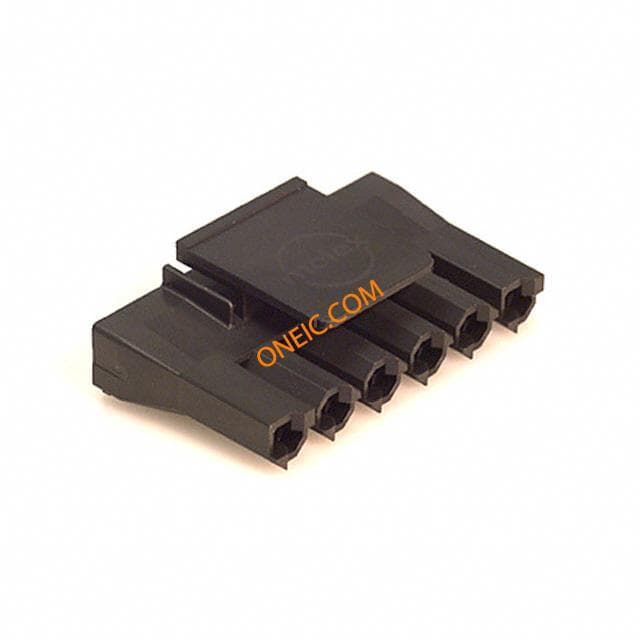

0444412006
