点击放大查看

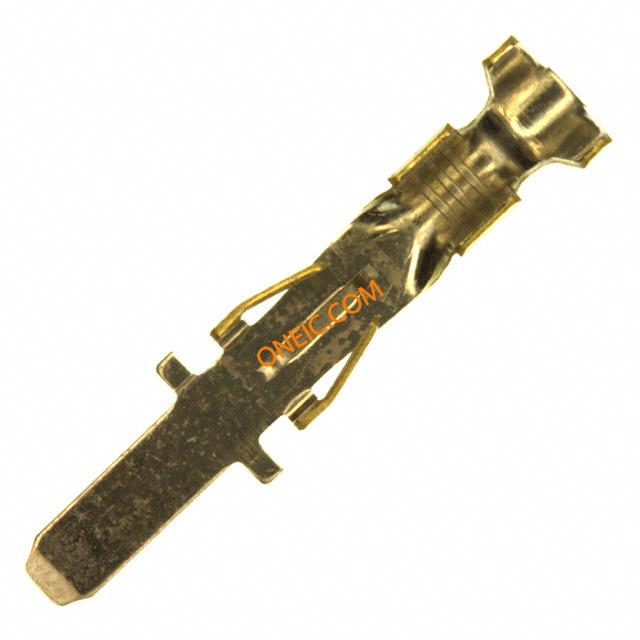

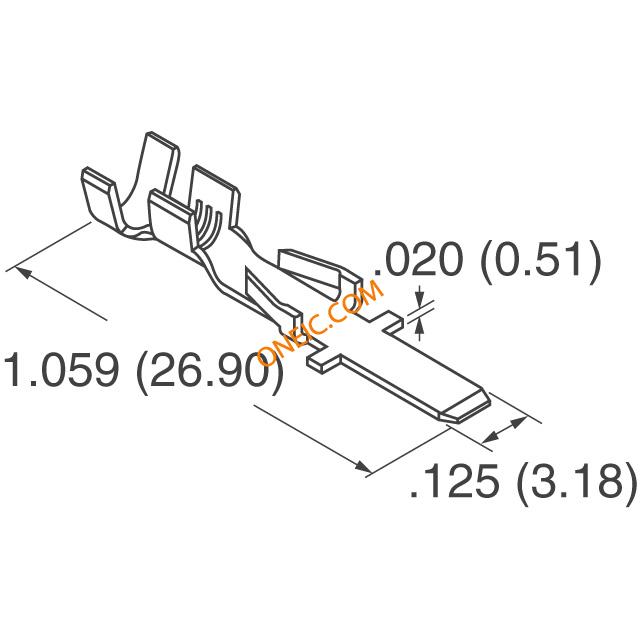

43178-1002
| 制造商 | Molex, LLC |
| 描述 | CONN TERM MALE 18AWG TIN CRIMP Headers & Wire Housings MALE 14-18 AWG male max dia. .130 |
| 分类 |
商业参数
| 商标名 | Sabre | 其他名称 | 0431781002 |
| 零件号别名 | 0431781002 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 18 A |
机械参数
| 包装方式 | Bulk | 导线线规 | 18 AWG |
| 触头类型 | Male Blade | 接触镀层 | Tin |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Stamped | 系列 | 43178 |
| 产品子类型 | Contacts | ||
