点击放大查看

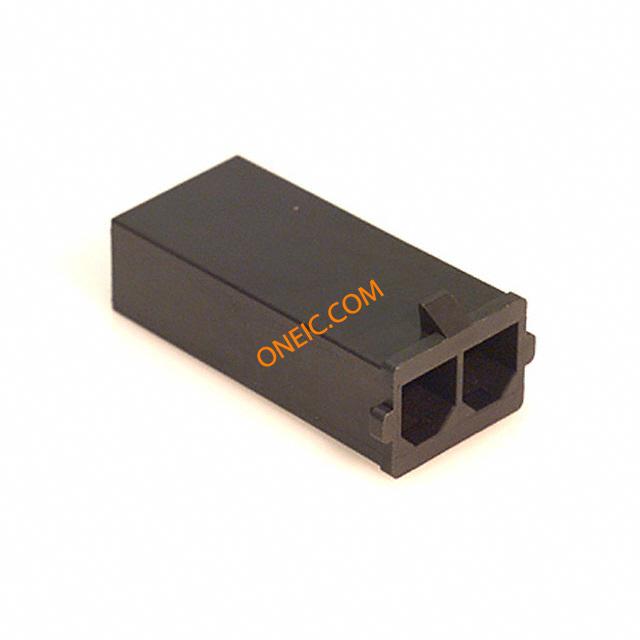

0436802002
| 制造商 | Molex, LLC |
| 描述 | . 0436802002 - 2 Position Blade Type Power Housing Connector Plug Black 0.295" (7.50mm) from Molex. from now! |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 18A | 最小输入电压 | 600V |
| 最小供电电压 | 600V | ||
机械参数
| 颜色 | Black | 深度 | 35.56 mm |
| 间距 | 0.295" (7.50mm) | 高度 | 19.15 mm |
| 包装方式 | Bag | 触头类型 | Male Blade |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 18.92 mm | 触点数 | 2 |
| 堆叠方向 | Side to Side | 接触件端接 | Crimp |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | ||
环境参数
| 工作温度 | -40°C ~ 75°C | ||
